Schumann Wave Generator – Acrylic Shell, 3.5mm Output

Specifications:

Choice: yes

Condition: New

Hign-concerned Chemical: None

Model Number: SMJAC03

Type: Relay

semi_Choice: yes

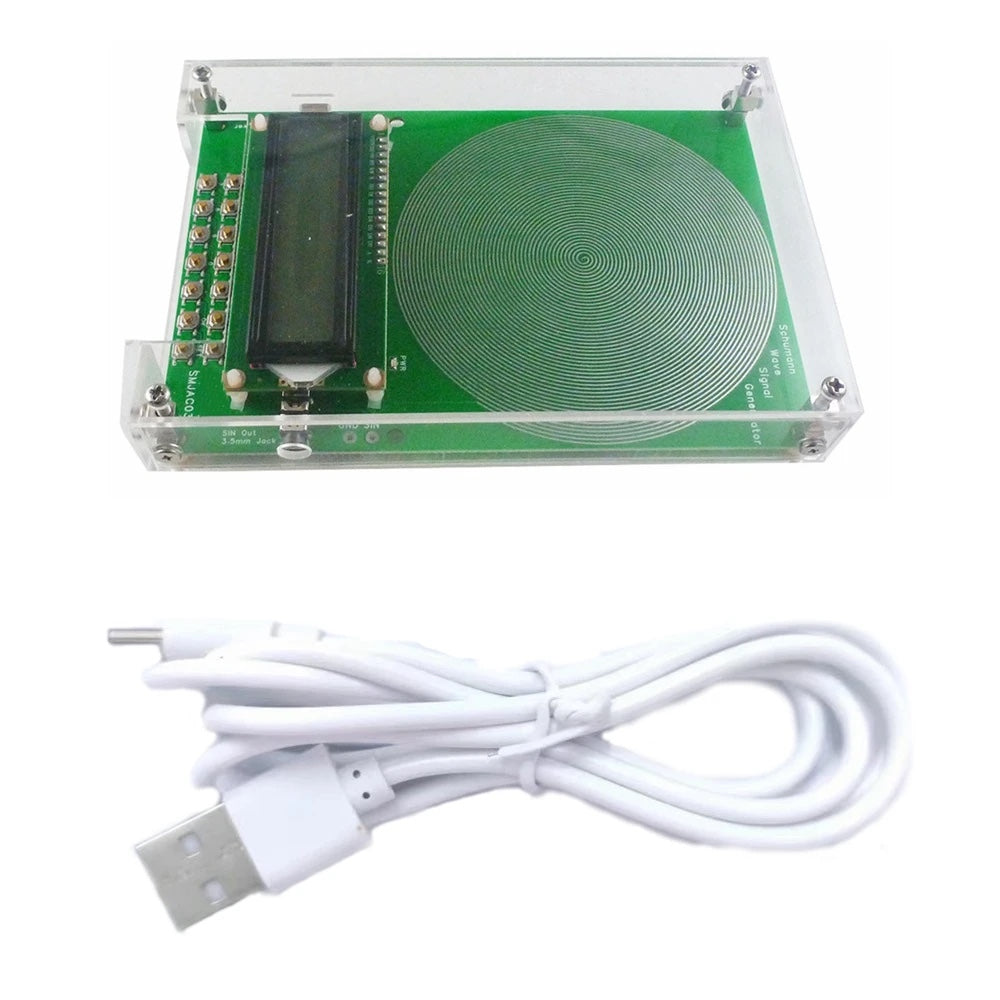

packing list:

1 PCS With Acrylic Shell Schumann Resonance Pulse Sine Wave Generator
1 PCS USB TYPE-C power supply cables

Description:

Schumann Wave itself does not act directly on sound or video products to improve sound quality, but on the space environment, which can relax people's body and mind, improve the body's perception of sound and images, improve the health of the human body and work efficiency, and relieve psychological pressure. This product not only can output 7.83Hz SchumannWave, but also can adjust the frequency in the range of 0.01Hz-100KHz, the digital circuit crystal oscillator frequency reference, more stable and strong anti-interference.



This is a new version of Schumann Wave adjustable signal generator, which uses a low-temperature drift crystal oscillator and a high-precision DAC dedicated chip. It can accurately output frequency and pure sine wave.

With Acrylic Shell Version :
1 Working voltage: DC 5V (DC 4-15V)
2 Working current: 9-14MA
3 Power interface: Type-c(Support TYPE-C TO TYPE-C power supply)
4 Default frequency: 7.83Hz
5 Adjustment range: 0.01Hz~100000Hz Pure Sine Wave
6 Signal voltage amplitude: 3V
7 With 3.5MM audio output
8 With acrylic shell
9 Size: 155*105*26MM(With shell)
10 Weight : 197g(With shell)



For more information please Google ''Schumann Resonance''.
For audio-visual space - to enhance the sound field and audio-visual effects
For the bedroom - to help sleep soothe the nerves, treatment of insomnia
For the office - relax and improve work efficiency
For the create space - to improve creative inspiration
For the tea ceremony, spirituality, realization space - resting body and mind


Q&A:

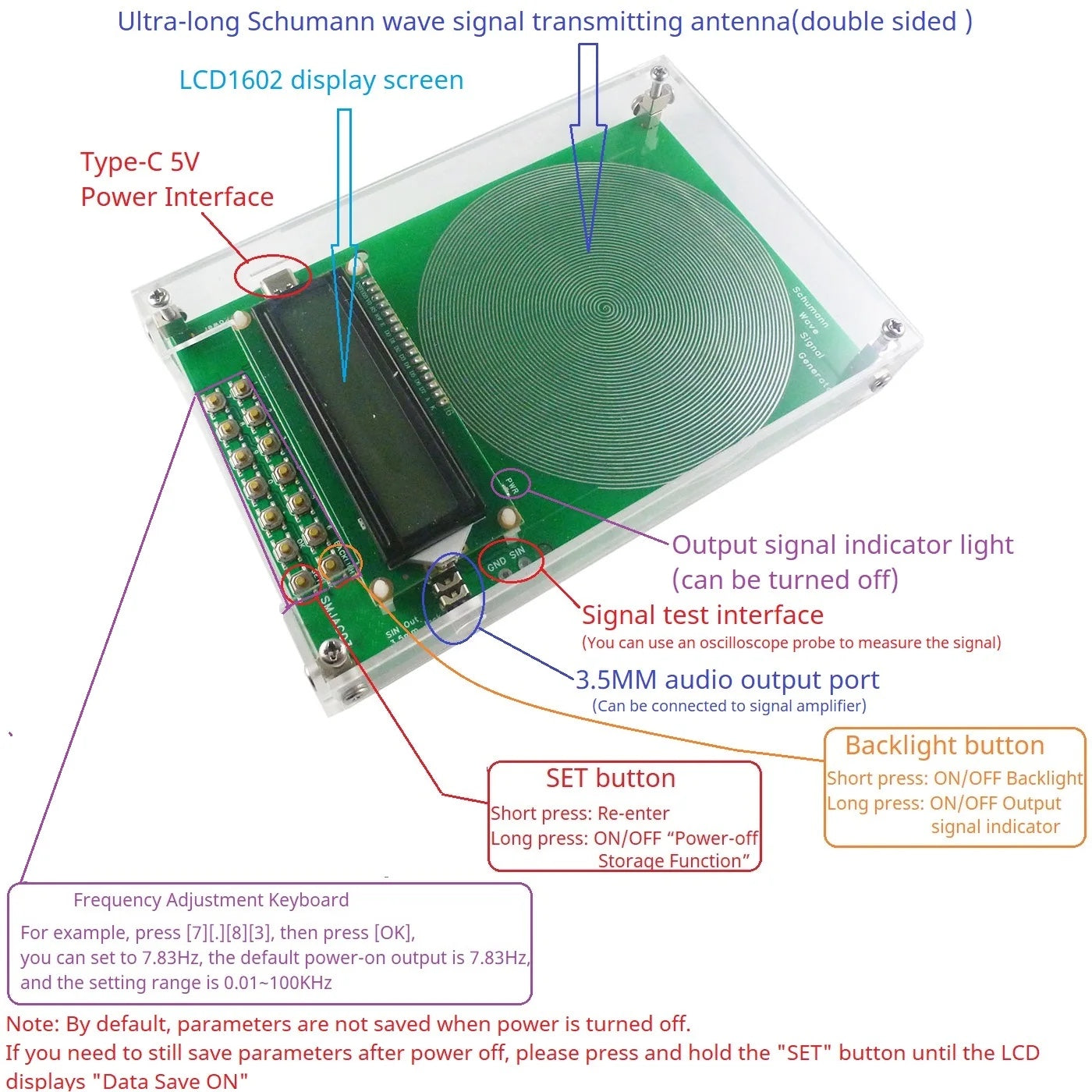

Q1:How to change the output frequency?

A1:Press the ''0-9'' and '.' buttons to enter the value, and press the OK button to confirm. If the input is wrong, press the SET button to re-enter.
For example, press [9][.][7][1], then press [OK], you can set to 9.71Hz, the default power-on output is 9.71Hz, and the setting range is 0.01~100KHz(Note: Not all frequency points can be set)



Q2:Need to save parameters even after power off?
A2:Please press and hold the ''SET'' button until the LCD displays ''Data Save ON''



Q3: How to verify the output waveform?

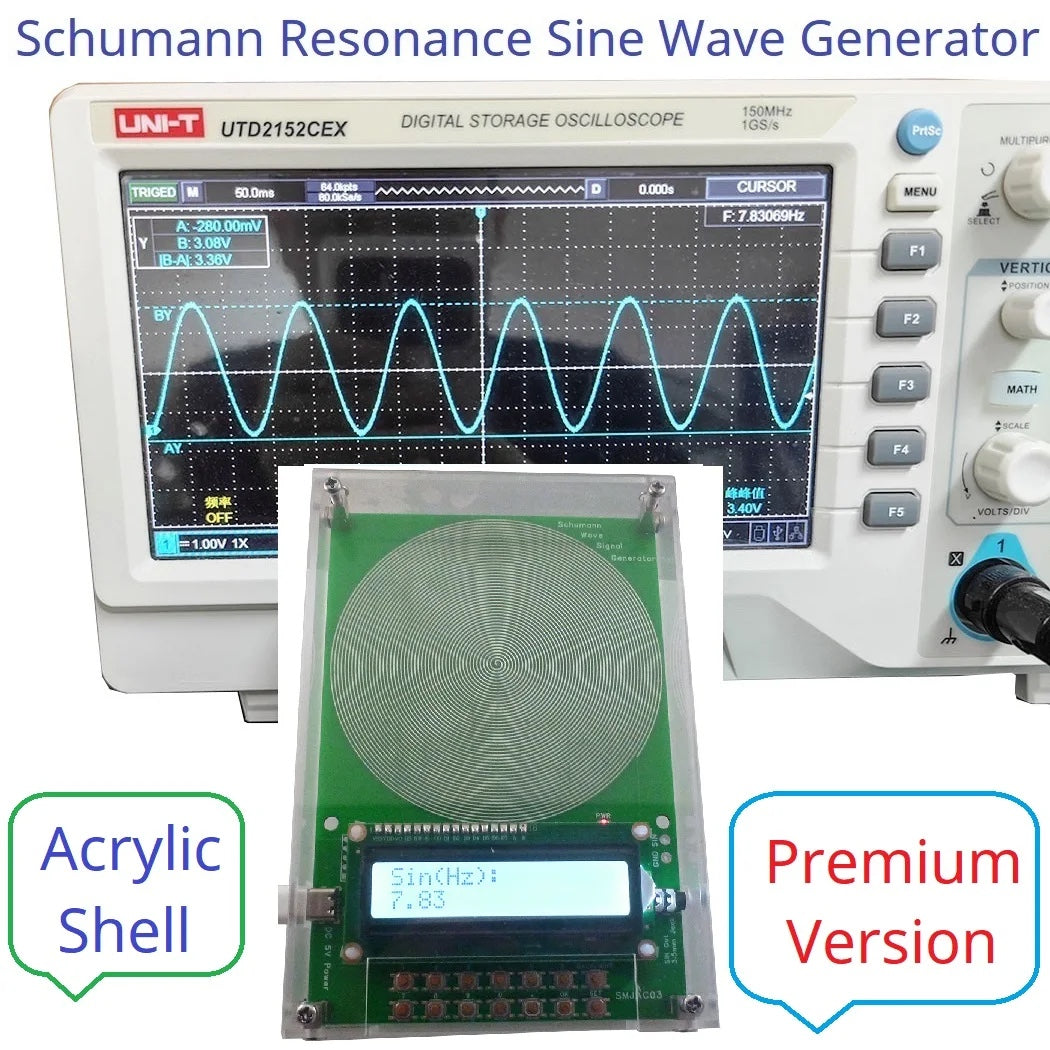

A3: Please use an oscilloscope to measure the ''GND/SIN'' port. You can see a pure sine wave.




Q4: How to turn off the LCD backlight?
A4:Short press the ''BACKLIGHT'' button to turn off the LCD backlight; short press the ''BACKLIGHT'' button again to turn on the LCD backlight





Q5:How to turn off the output signal indication (PWR LED)?
A5:Long press the ''BACKLIGHT'' button to turn off the output signal indication; long press the ''BACKLIGHT'' button again to turn on the output signal indication.




Q6:LCD does not display correctly after power on?
A6:Please press the RES button briefly and power on again
