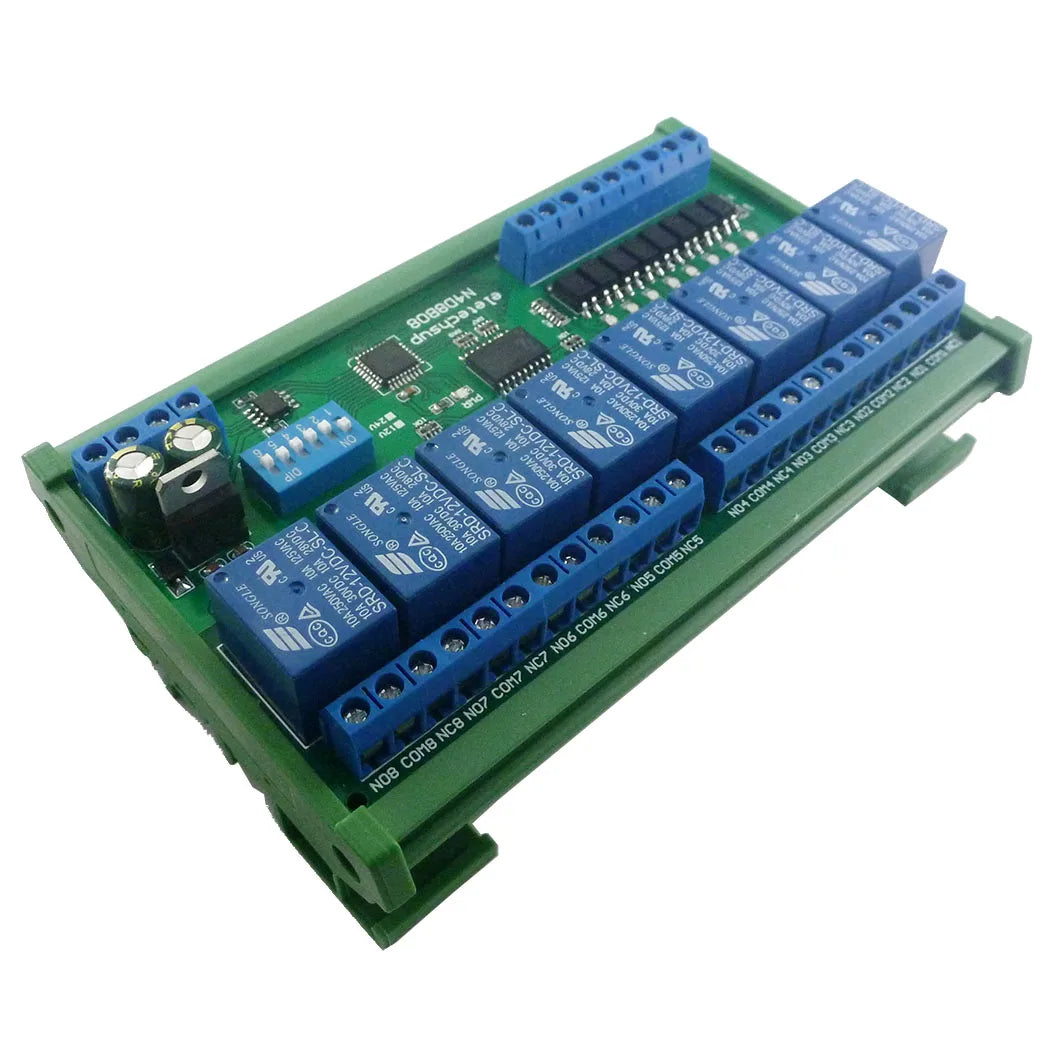

RS485 Modbus IO Module – DIN Rail, 8CH In/Out
RS485 Modbus IO Module – DIN Rail, 8CH In/Out
Regular price
$59.99 USD
Regular price
$103.99 USD
Sale price
$59.99 USD
Taxes included.
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Specifications:
Bus Interface: RS485
Condition: New
Dissipation Power: 1-5W
High-concerned Chemical: None
Input Channels: 8
Operating Temperature: -40-80
Operating Voltage: DC 12V/24V
Output Channels: 8
Package: DIP
Rail: DIN35
Standby current: 13MA
Supply Voltage: DC 12V/24V
Type: Logic ICs
is_customized: Yes
Product Name:
DC 12V 24V 8I8O Multifunction Modbus RTU Relay Module Support 03 06 16 Function Code RS485 Switch Control Board DIN35 Rail Box
Package included:

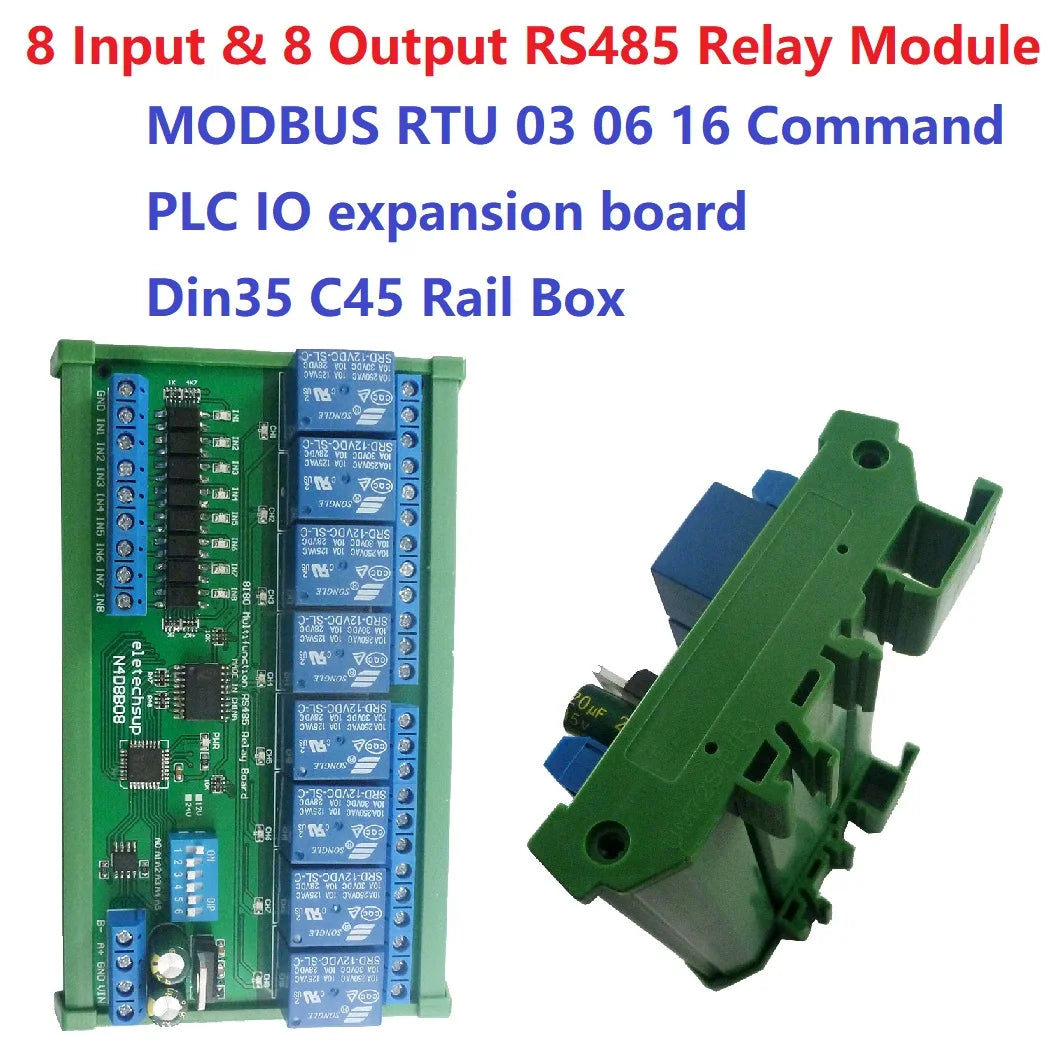

1PCS DC 12V/24V 8 IO Input & 8 Output DIN35 C45 Rail Box RS485 Relay Module
Description:
1- DC 12V (12V Version), DC 24V (24V Version)
2- Standby current (all relays closed) 13MA, 1 relay open 41MA, 2 relays open 69MA, 3 relays open 95MA,4 relays open 123MA,5 relays open 149MA,6 relays open 174MA, 7 relays open 198MA,8 relays open 225MA

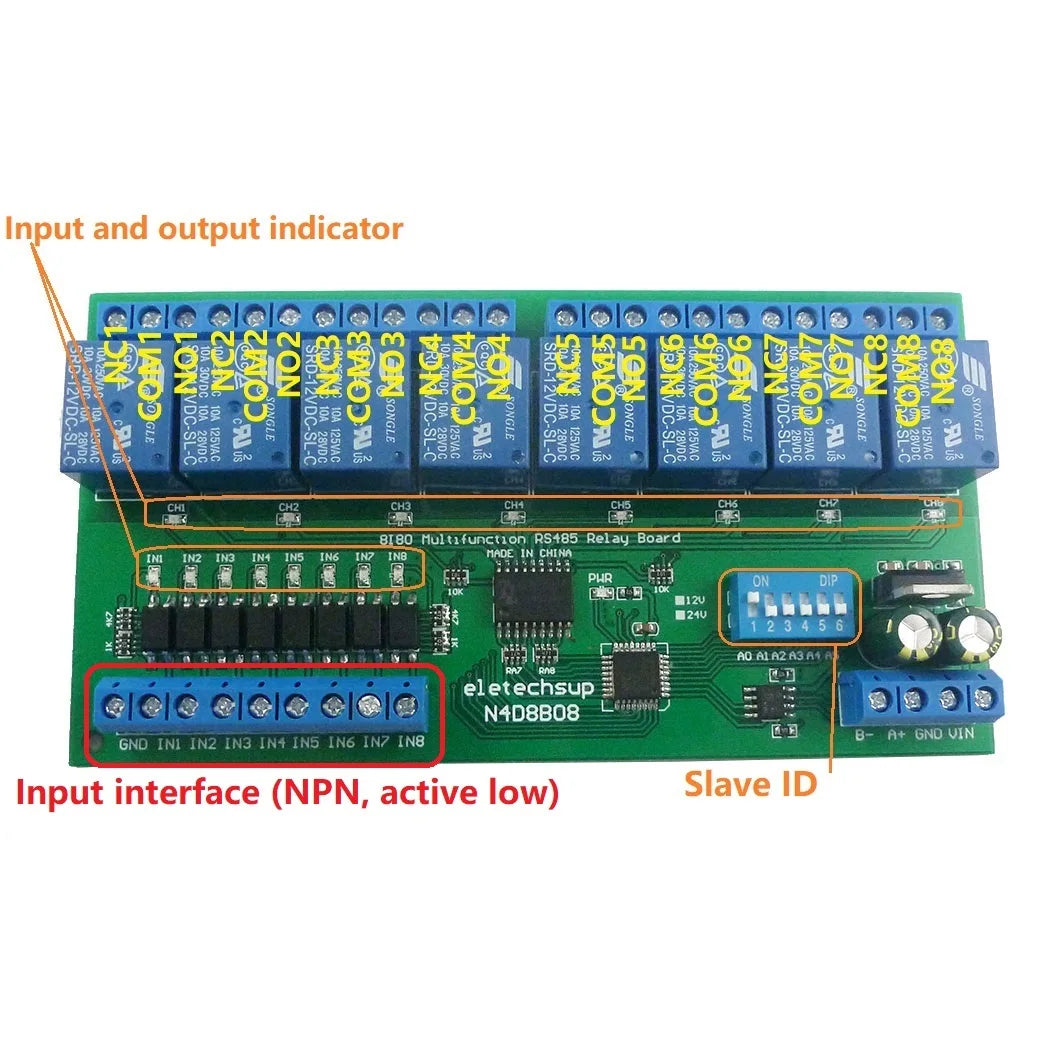

3- 8 photoelectric isolation Input ports (NPN low level active ), the input and output relationship can be set to associated (default) and non-associated through commands.
4- ''open'' ''close'' ''Momentary'' ''Self-locking'' ''Interlock'' ''Delay'' 6 Commands
5- MODBUS RTU command, Support 03 06 16 function code
6- Under the ''Delay'' command ,the maximum delay is 255 seconds;
7- MODBUS commands can be made serial HyperTerminal (serial assistant) OR ''Modbus Poll'' Enter.
8- Under the MODBUS command mode, it can support up to 64 devices in parallel
9- The default baud rate is 9600BPS. The baud rate can be selected through jumpers: 2400 4800 9600 19200BPS

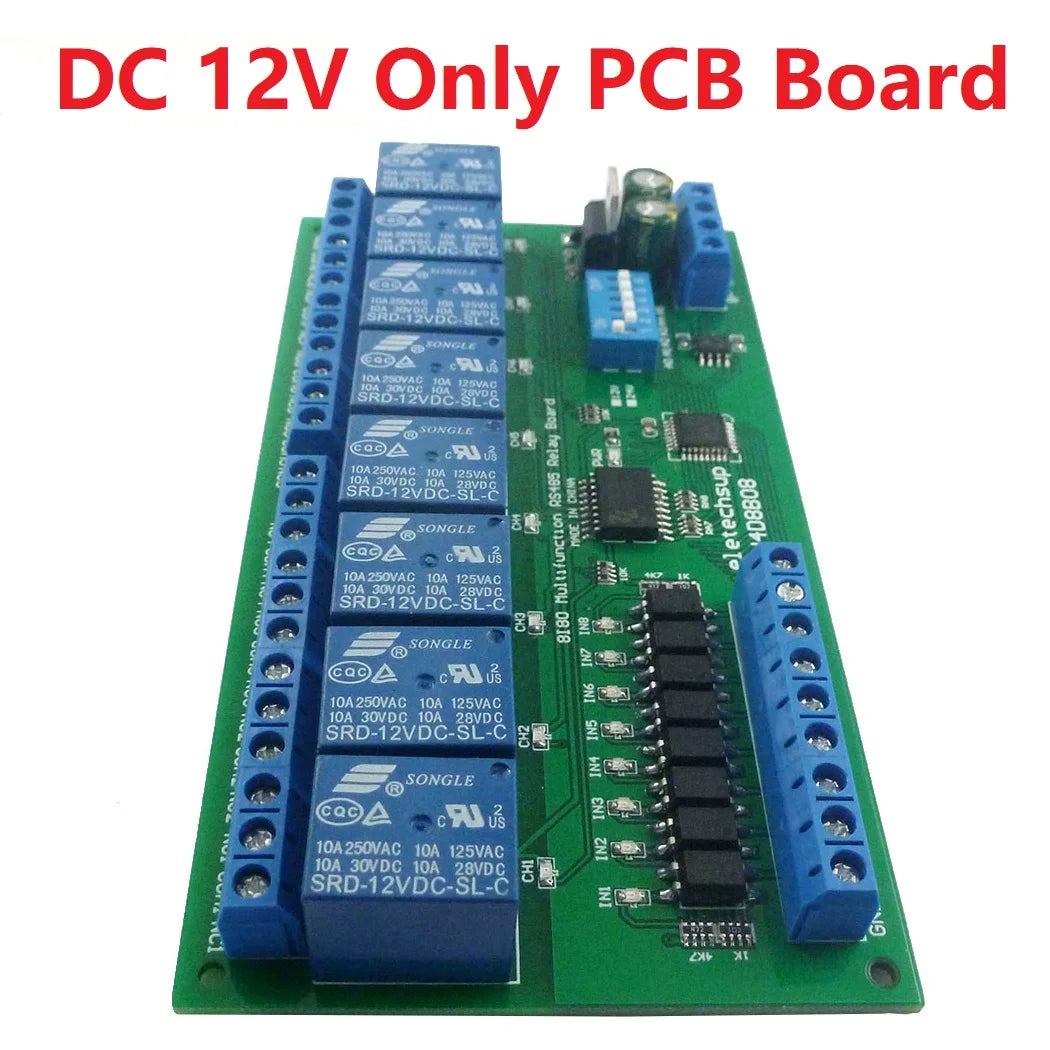

10- Size: 136 * 72 * 20mm(Only PCB Board);140 * 88* 42mm(with Din Rail Box)
11- Weight: 134g(Only PCB Board); 223g(with Din Rail Box)
12- Maximum load:
2- Standby current (all relays closed) 13MA, 1 relay open 41MA, 2 relays open 69MA, 3 relays open 95MA,4 relays open 123MA,5 relays open 149MA,6 relays open 174MA, 7 relays open 198MA,8 relays open 225MA
3- 8 photoelectric isolation Input ports (NPN low level active ), the input and output relationship can be set to associated (default) and non-associated through commands.
4- ''open'' ''close'' ''Momentary'' ''Self-locking'' ''Interlock'' ''Delay'' 6 Commands
5- MODBUS RTU command, Support 03 06 16 function code
6- Under the ''Delay'' command ,the maximum delay is 255 seconds;
7- MODBUS commands can be made serial HyperTerminal (serial assistant) OR ''Modbus Poll'' Enter.
8- Under the MODBUS command mode, it can support up to 64 devices in parallel
9- The default baud rate is 9600BPS. The baud rate can be selected through jumpers: 2400 4800 9600 19200BPS
10- Size: 136 * 72 * 20mm(Only PCB Board);140 * 88* 42mm(with Din Rail Box)
11- Weight: 134g(Only PCB Board); 223g(with Din Rail Box)
12- Maximum load:
10A / 250VAC,
10A / 125VAC,
10A / 30VDC,
10A / 28VDC,
10A / 12VDC

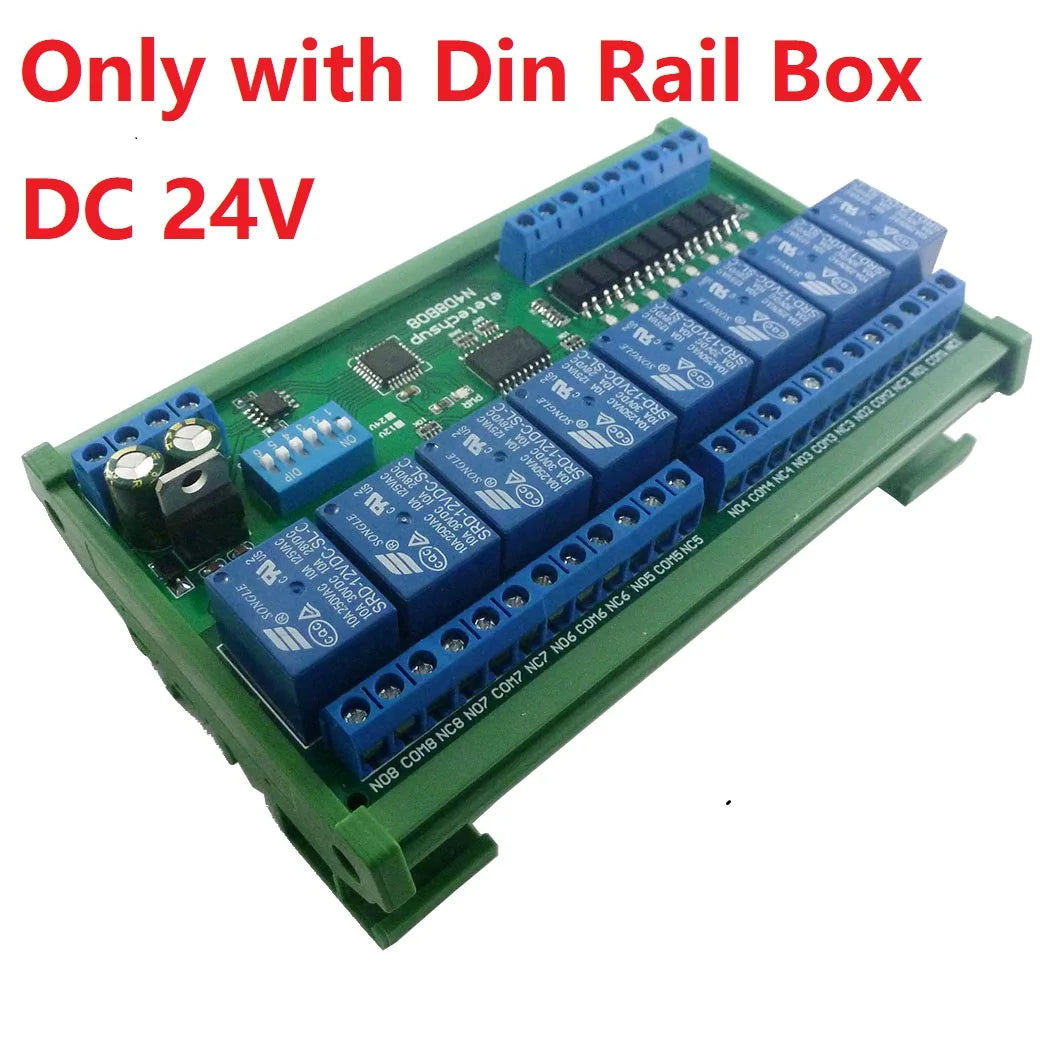

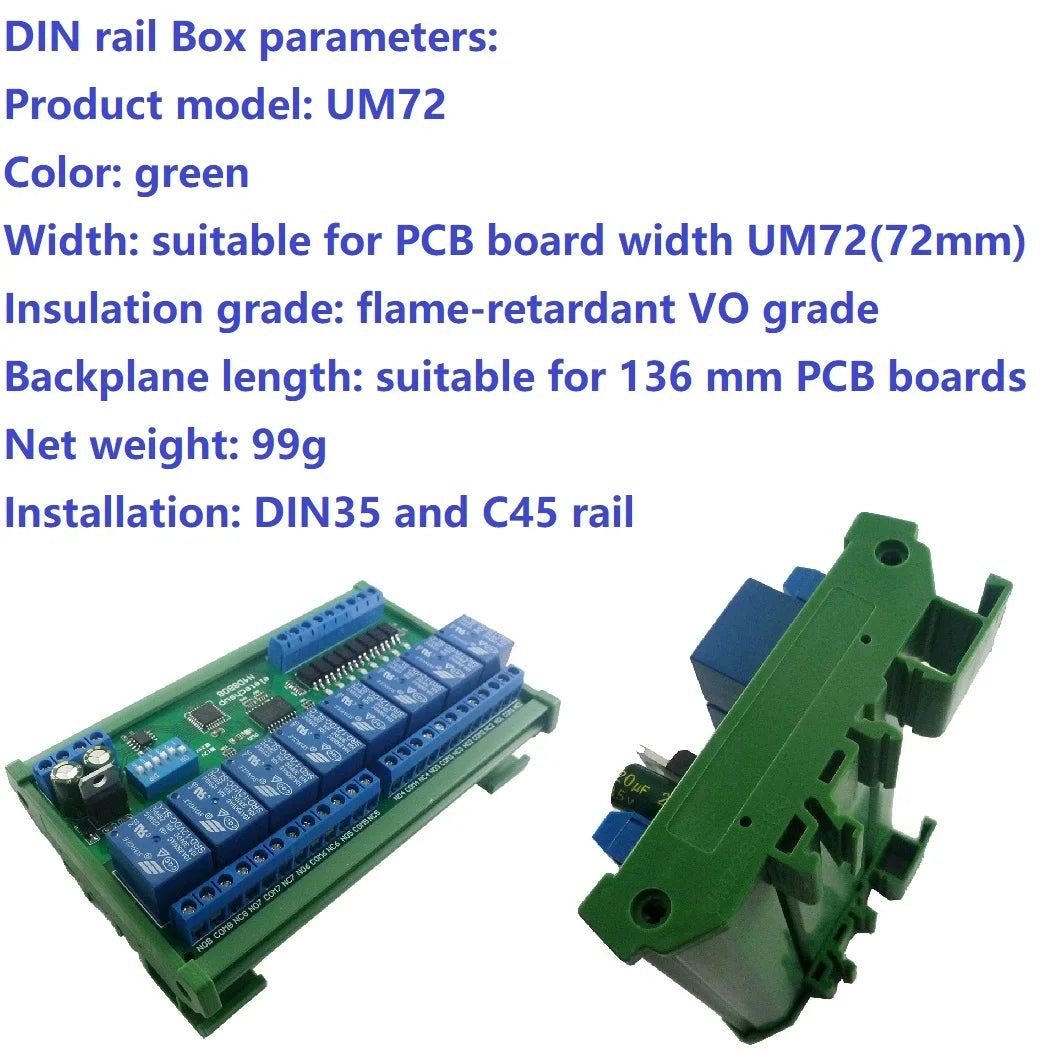

DIN rail Box parameters:
Product model: UM72
Color: green
Width: suitable for PCB board width UM72(72mm)
Insulation grade: flame-retardant VO grade
Backplane length: suitable for 136 mm PCB boards
Net weight: 99g
Installation: DIN35 and C45 rail
DIN rail Box parameters:
Product model: UM72
Color: green
Width: suitable for PCB board width UM72(72mm)
Insulation grade: flame-retardant VO grade
Backplane length: suitable for 136 mm PCB boards
Net weight: 99g
Installation: DIN35 and C45 rail
Application:
PLC IO expansion board
Smart Home,Home Automation ,Wiser Home;
Smart Home,Home Automation ,Wiser Home;
PTZ CCTV Camera
Security Monitoring
Identification system;
Motor FW & BW
Automatic curtain control
Automatic curtain control
Typical applications:
1 The dial switch (slave address) is invalid and can only control one module at a time.
1 The dial switch (slave address) is invalid and can only control one module at a time.
MODBUS RTU command mode (HEX), you can control a variety of ways: Serial Hyper Terminal Control (need to manually add the CRC), Modbus Poll software control (software automatically add the CRC), PLC or MCU process control
Wiring Diagram:

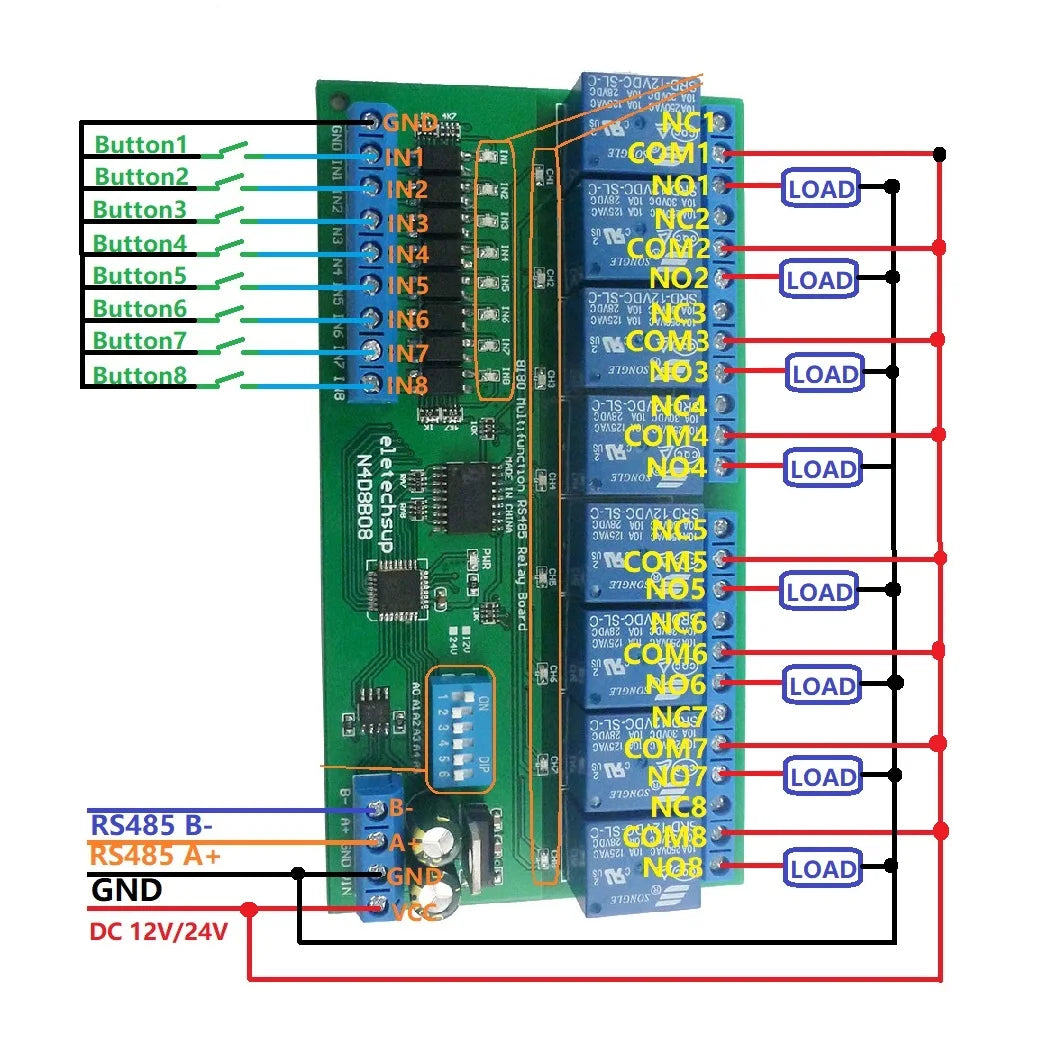

1 DC 12V/24 control circuit,Wiring diagram below. ''LOAD'' may be camera,LED lights, fans, motors and other DC 12V/24V equipment

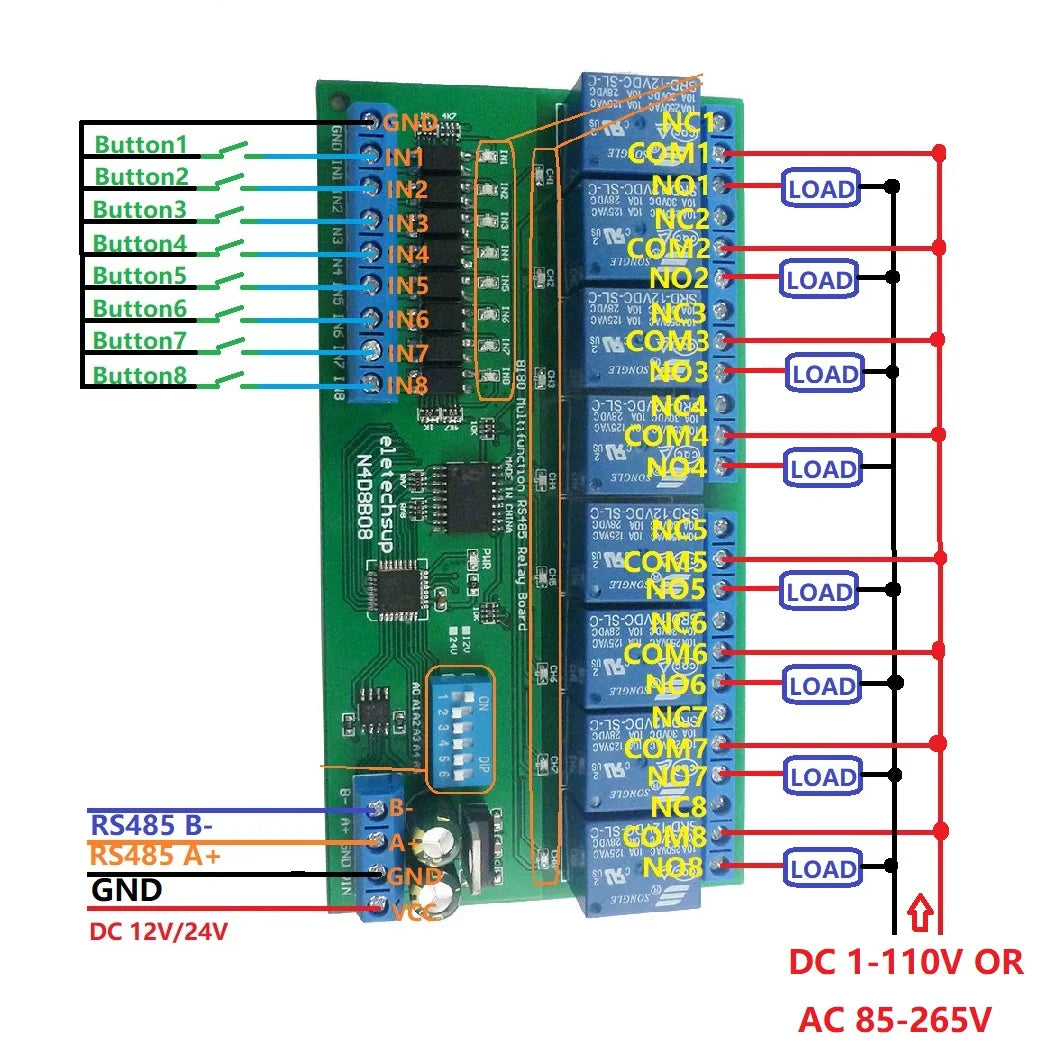

2 DC 1-110V OR AC 85-265V control circuit,Wiring diagram below(Note:If not DC 12V/24V load, need another DC 12V/24V power supply). ''LOAD'' may be LED lights, fans, motors Lights, fluorescent lights, solar water heaters and other DC AC equipmen
Test Software(We offer a demo video):
Serial HyperTerminal:
Modbus Poll
