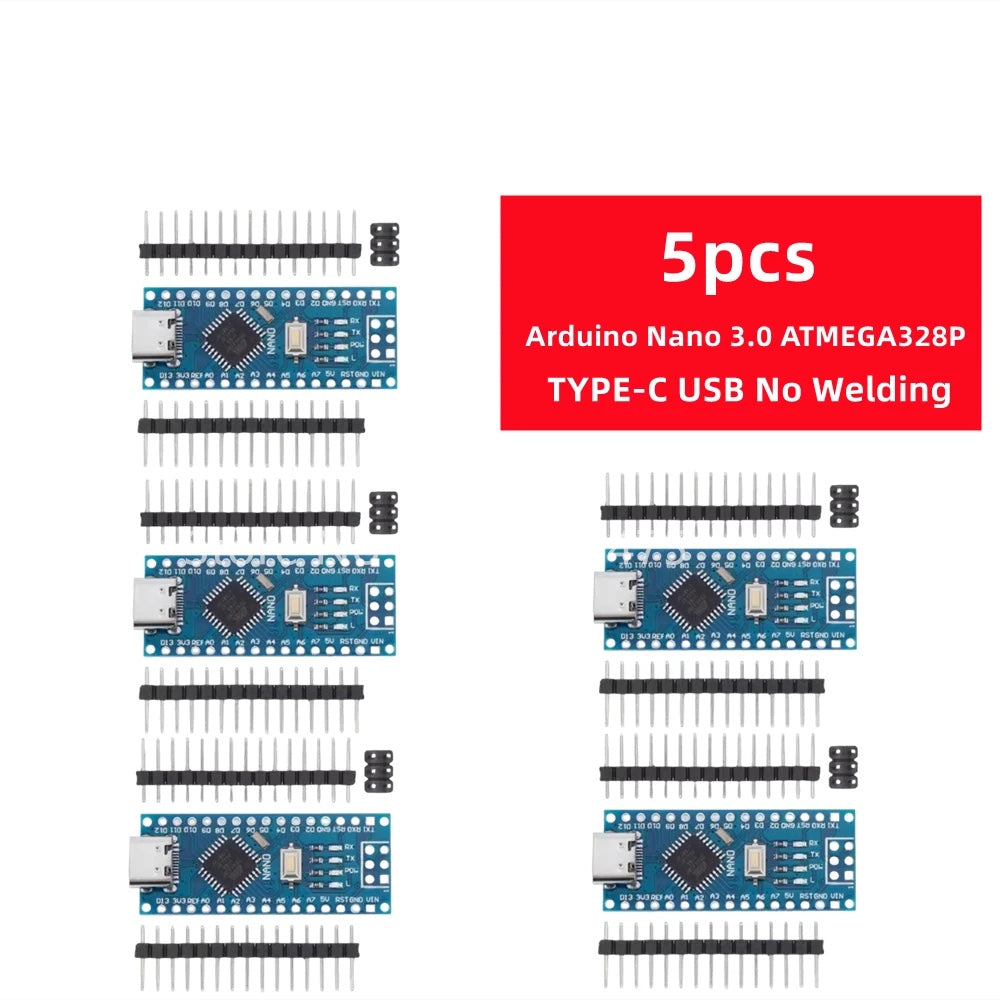

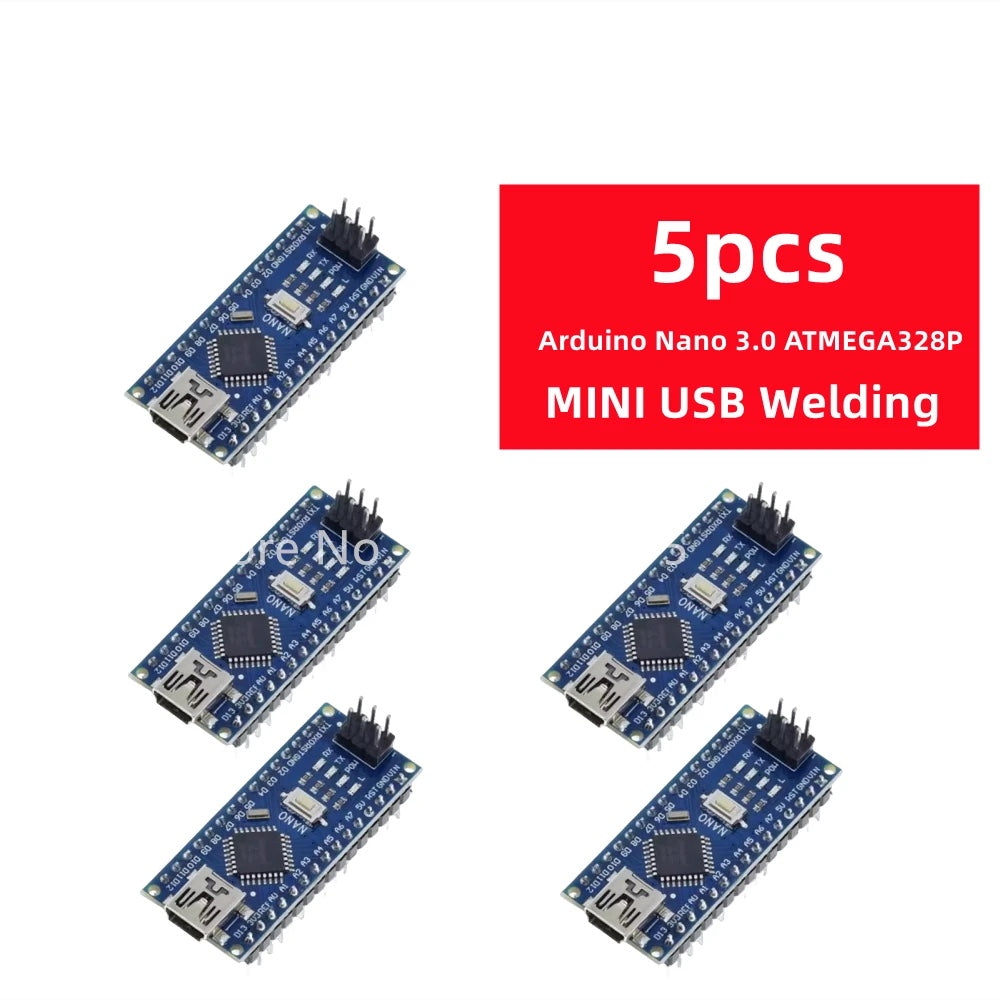

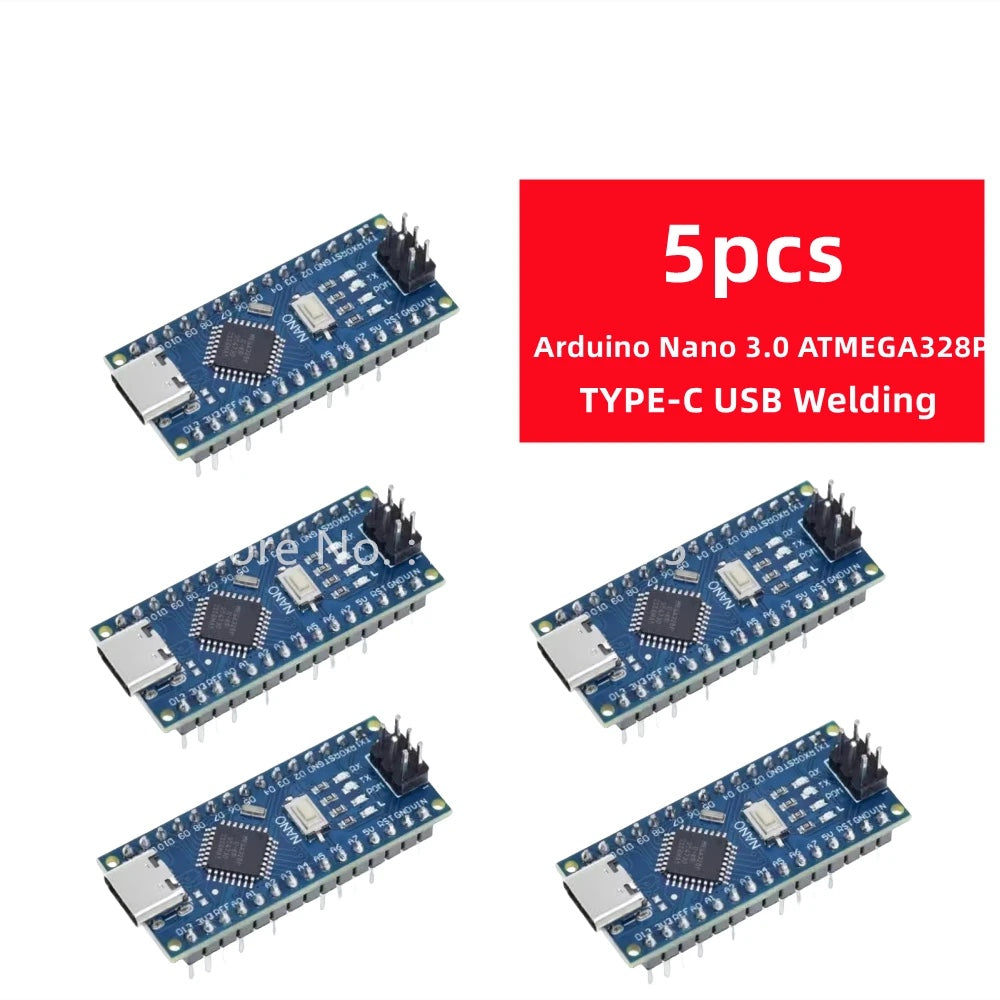

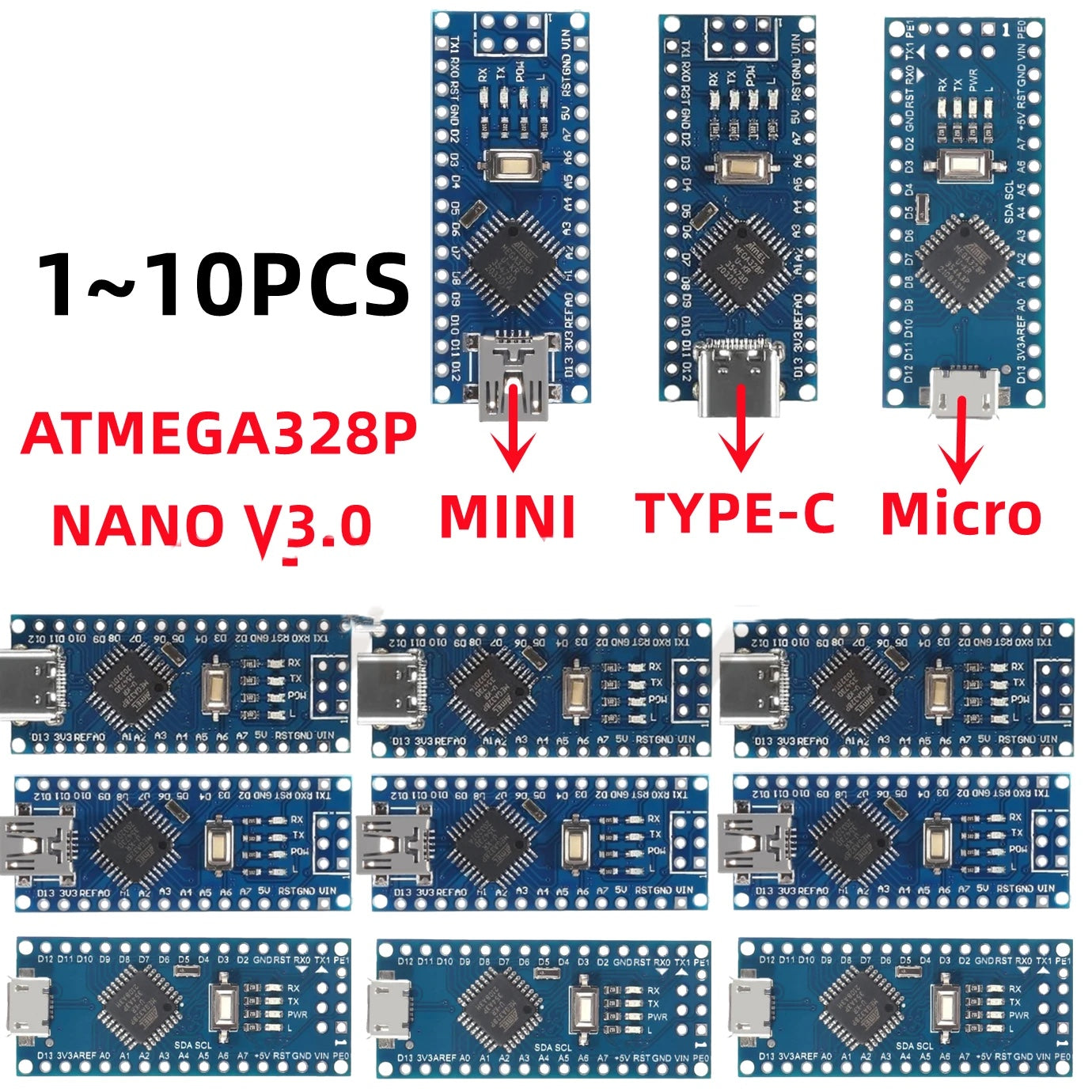

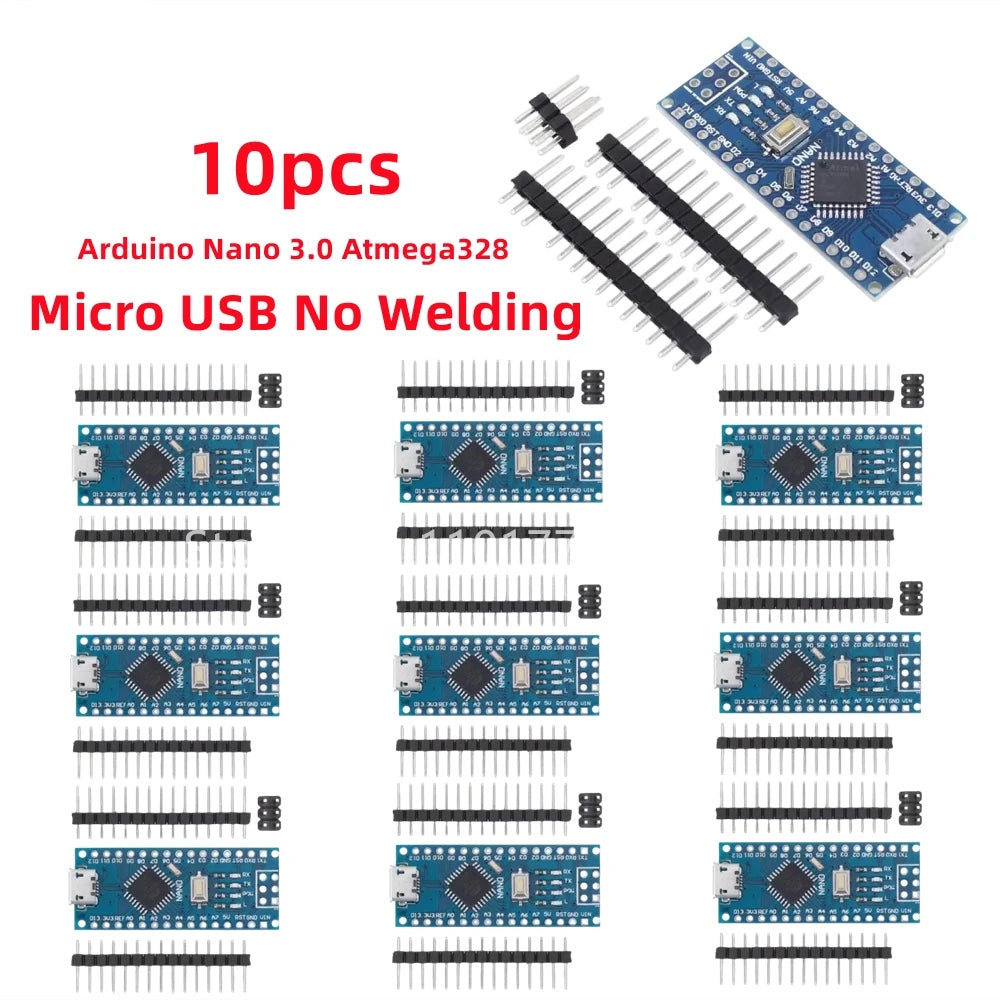

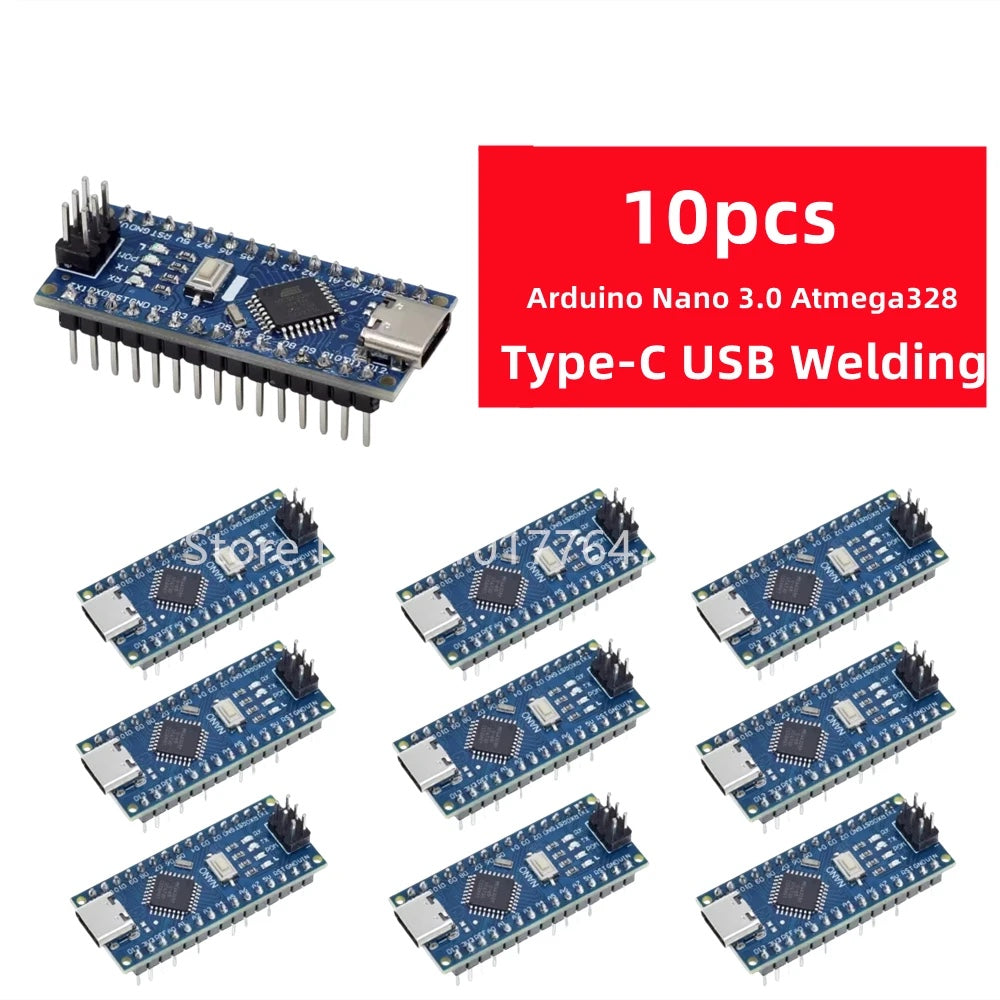

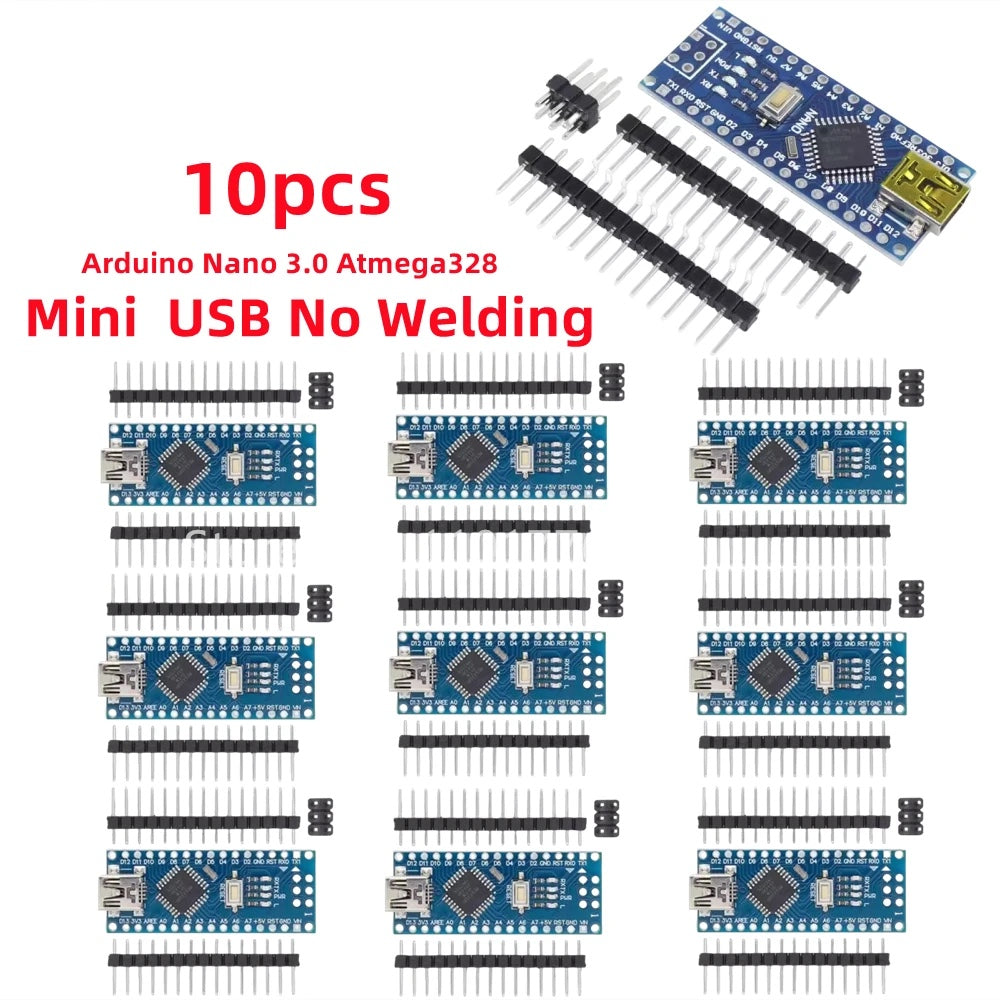

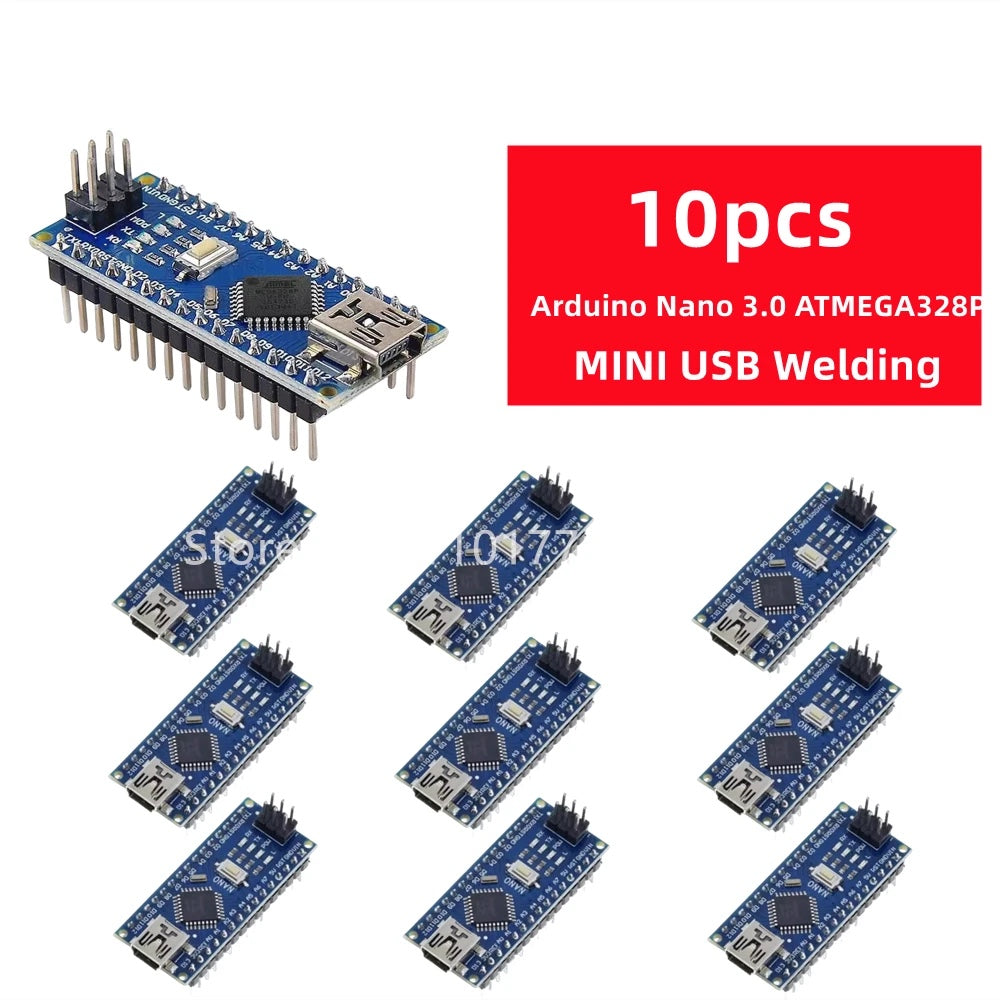

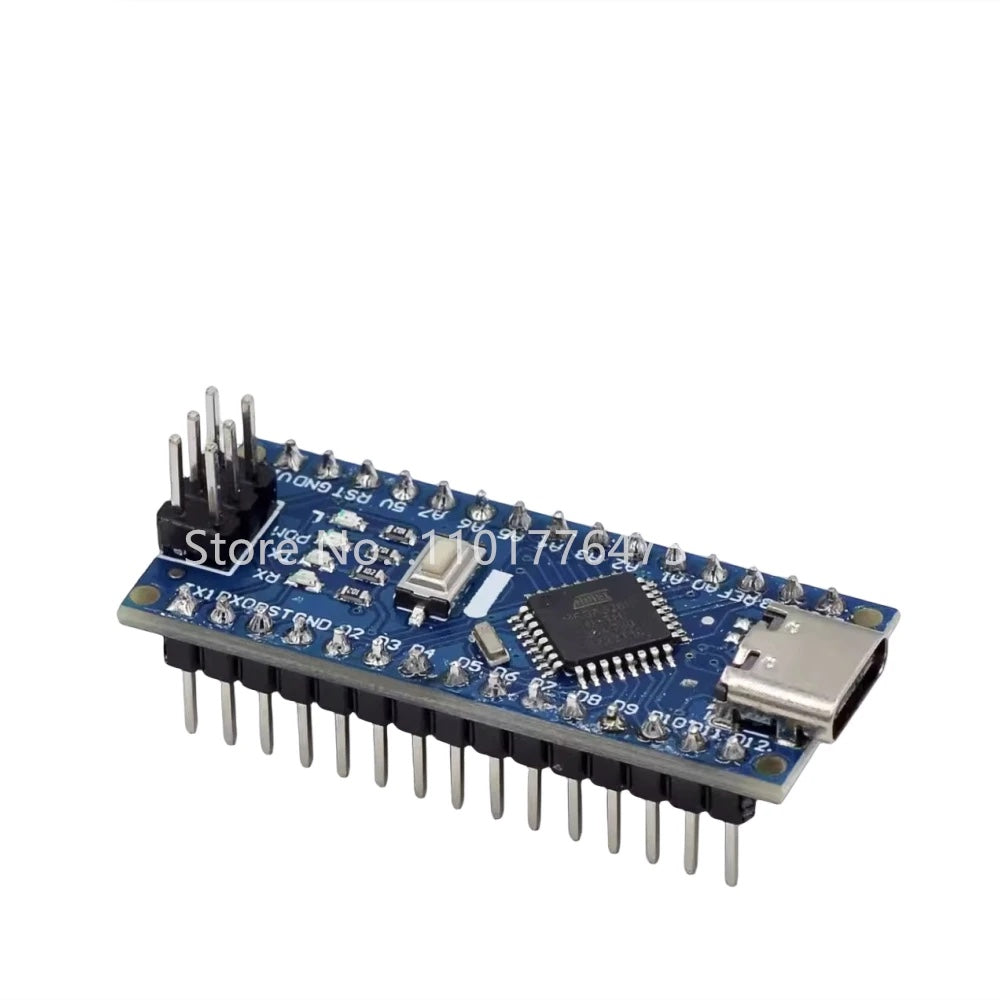

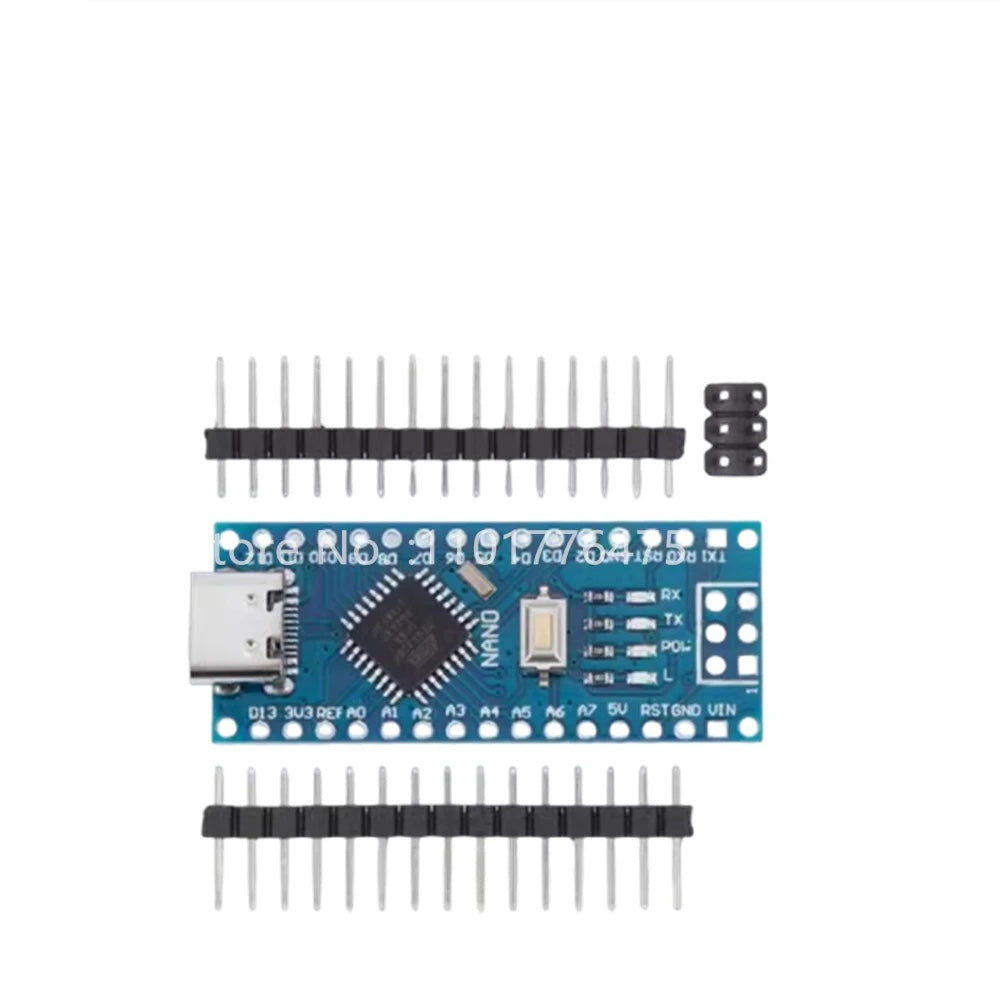

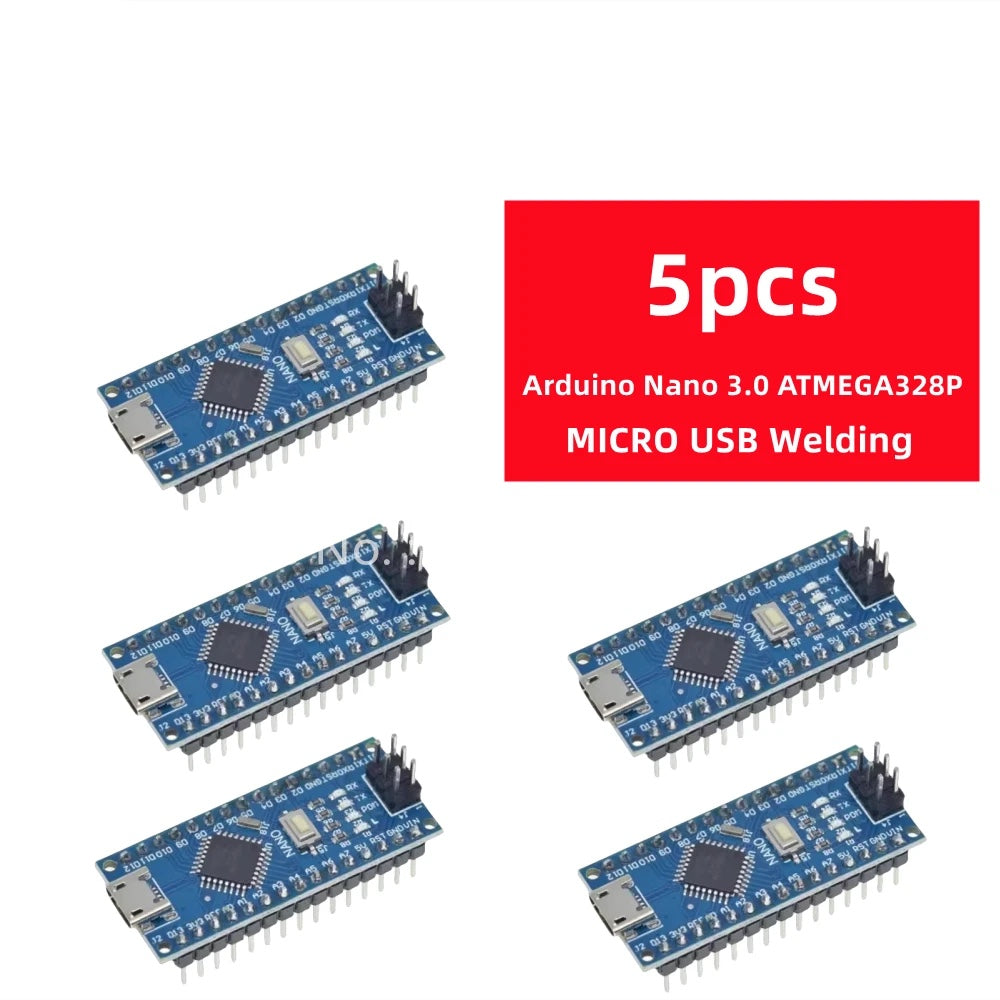

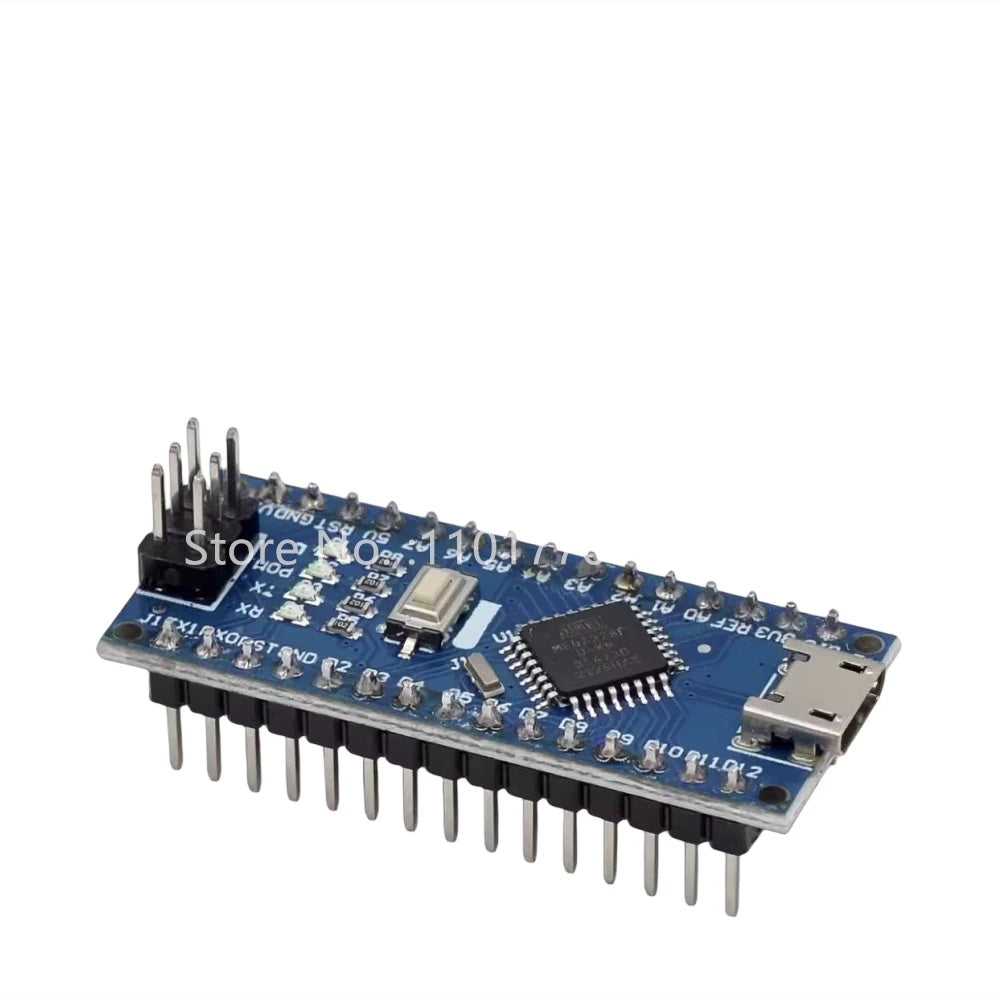

Nano 3.0 Dev Board – USB Type-C/Micro, CH340

Specifications:

Choice: yes

Condition: New

Dissipation Power: 1

Model Number: Nano V3.0

Operating Temperature: 1

Supply Voltage: 1

Type: Voltage Regulator

is_customized: Yes

semi_Choice: yes

Nano is an ultra-small Simple 1/0 platform based on open source code. Nano has a great advantage in size compared to the previous USB version of Diecimila. It can be used to develop electronic devices that need to run independently and have interactive effects. It can also be used to develop interactive works that are connected to the computer and cooperate with Flash, Processing, Max/Msp, PD, wvwV, and other software.

This module modifies Ft232RL to CH340G, which is compatible with Windows 8, Windows 8.1, and Windows 10 systems. For Windows 7 and above systems, as long as the network is connected, the system can automatically search for drivers without the need for users to download drivers.

We replaced the USB chip to improve the download speed and increase stability in win7/win8 while keeping the performance of NANO and the main control chip ATMEGA328P-AU unchanged.

Features:
1. 12 digital input/output ports D2-D132, 8 analog input ports AO-A7
2. 1 pair of TTL level serial port transceiver ports RX/TX
3. 6 PWM ports: D3, D5, D6, D9, D10, D115, using Atmel Atmega328p-AU microcontroller
4. Supports USB download and power supply
5. Supports external 3.3V-12V DC power supply
6. Supports lithium battery and 9V battery power supply
7. Supports ISP download

Instructions

1. Download IDE2 of Arduino.
2. Download the USB chip driver.
3. Plug in the NANO development board; the driver will install automatically.
4. Select the NANO board in the settings.
5. Choose the COM port, which can be found in 'My Computer'; it's the port in your Uno development board.
6. It's advisable to start with the default program and upload it first.
