High-Power Boost Converter – 5A DC Module

Specifications:

Application: Electric Toy

Choice: yes

Condition: New

Dissipation Power: 70W

High-concerned Chemical: None

Model Number: DD0424TA

Operating Temperature: -40~+85

Package: SMD

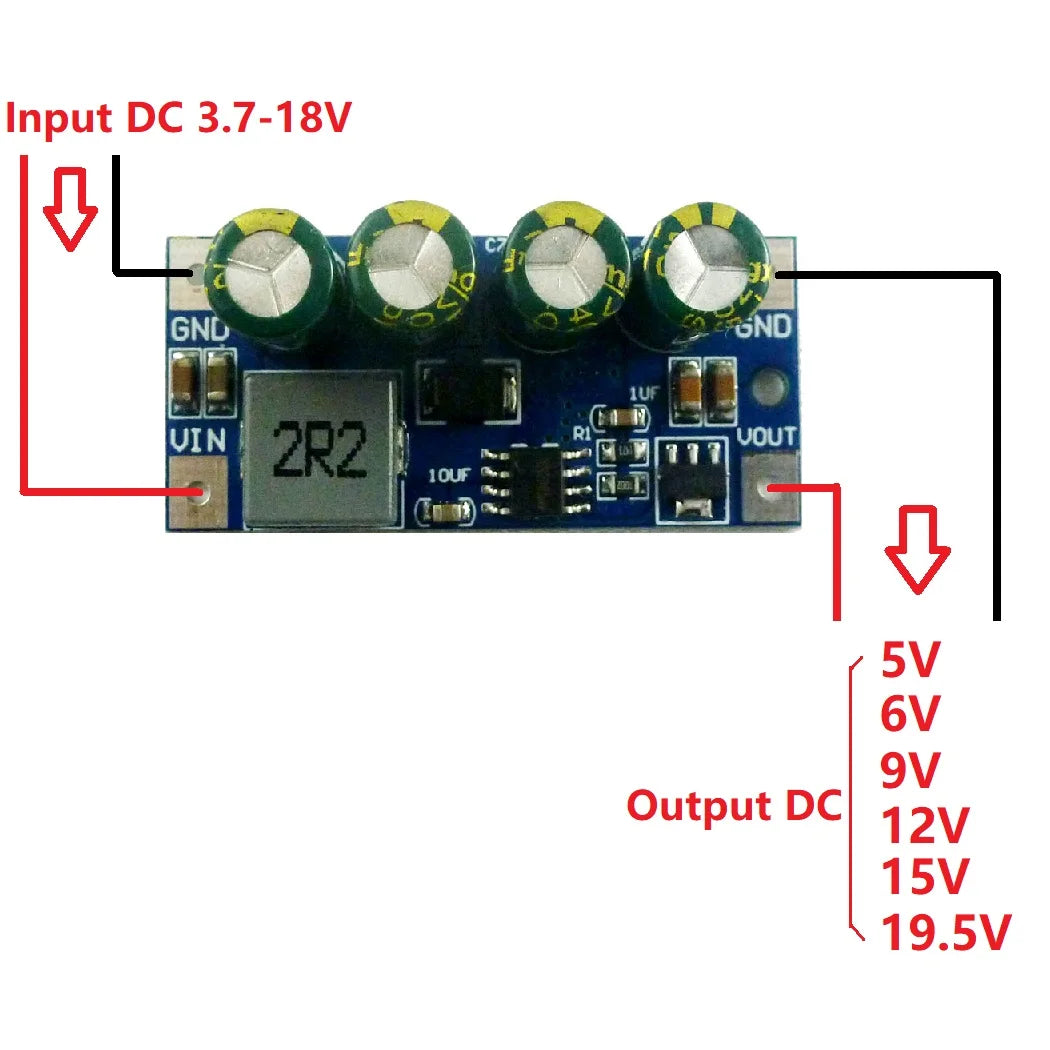

Supply Voltage: DC 3.7 ~ 18V

Type: Voltage Regulator

is_customized: Yes

semi_Choice: yes

Product Name:

5A high-power DC DC Converter Step-Up Module DC 3.7V 4.2V 7.5V 8V 9V 10V 14.8V to 5V 6V 9V 12V 15V 19.5V Voltage Boost Board

Packing list:

1 PCS DD0424TA  5A high-power DC-DC Converter Step-Up Boost module
(5V/6V/9V/12V/15V/19.5V optional)

Description:

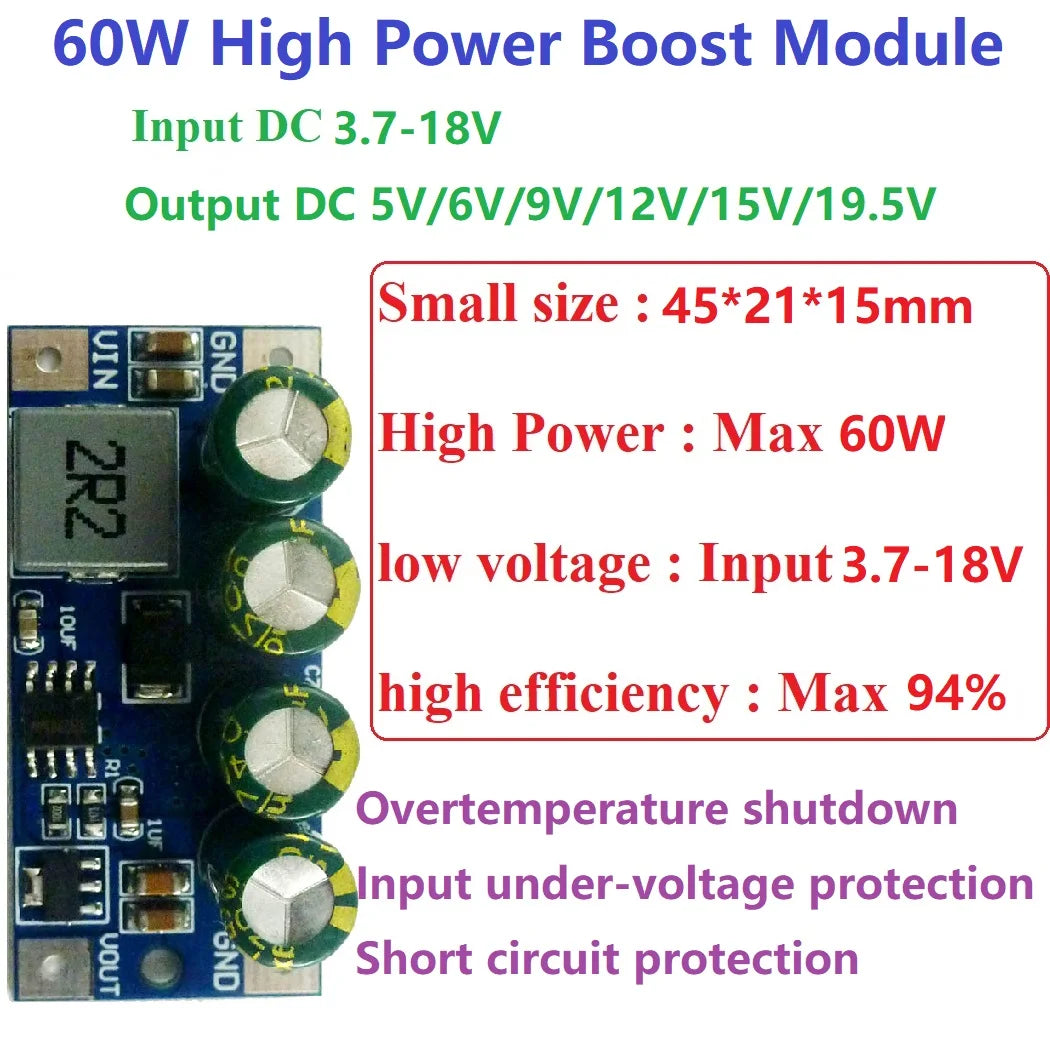

DC DC Boost Converter Module working frequency 600KHZ.

Up to 94% Efficiency (usually is 74%-91%)

Quiescent current: about 1MA

Maximum power 17W-67W

Overtemperature shutdown, input under-voltage protection and short circuit protection.

Operating temperature range : -40~+85 Degrees Celsius

Storage temperature range : -65~+150 Degrees Celsius

Size : 45*21*15mm
Weight : 9g

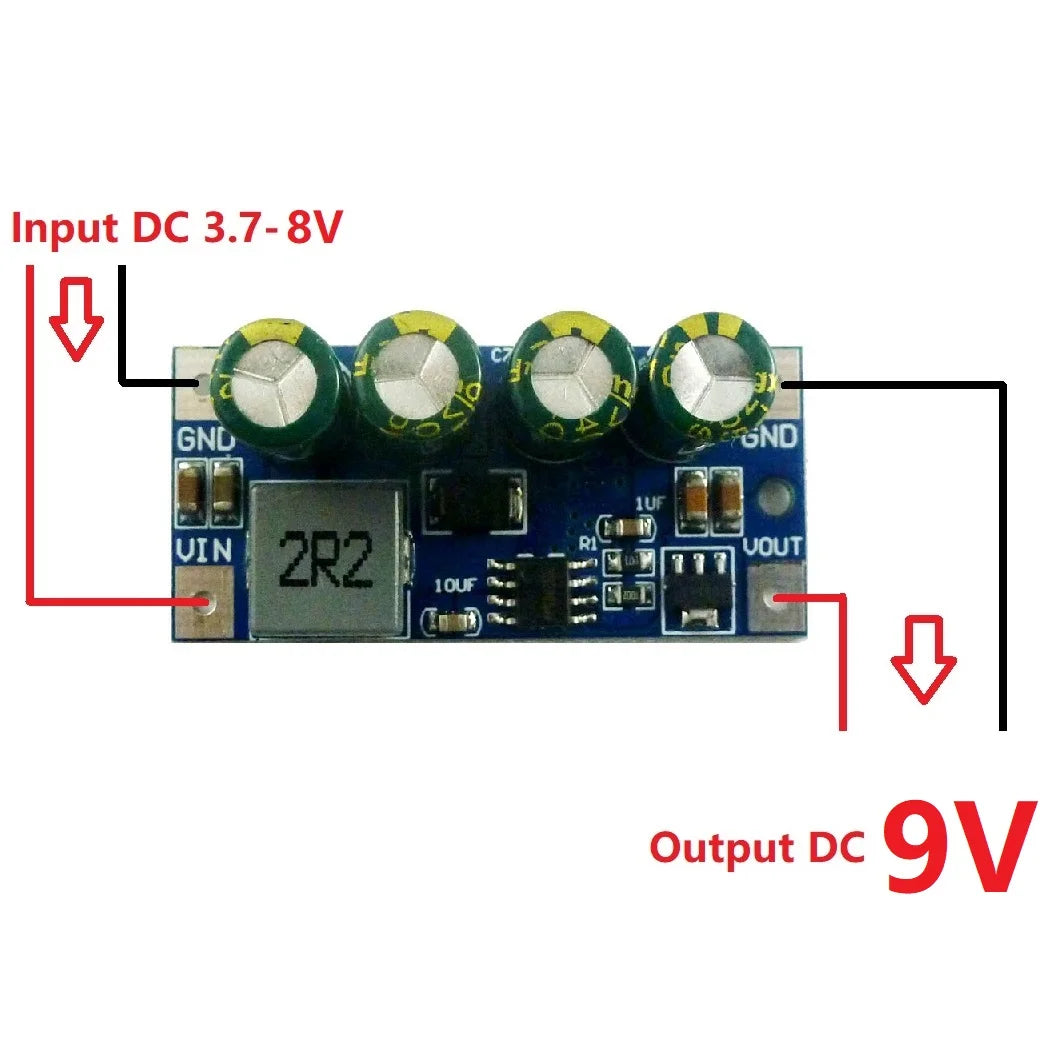

Output 5V :
Input voltage DC 3.7 ~ 4.5V,output DC 5V±3%

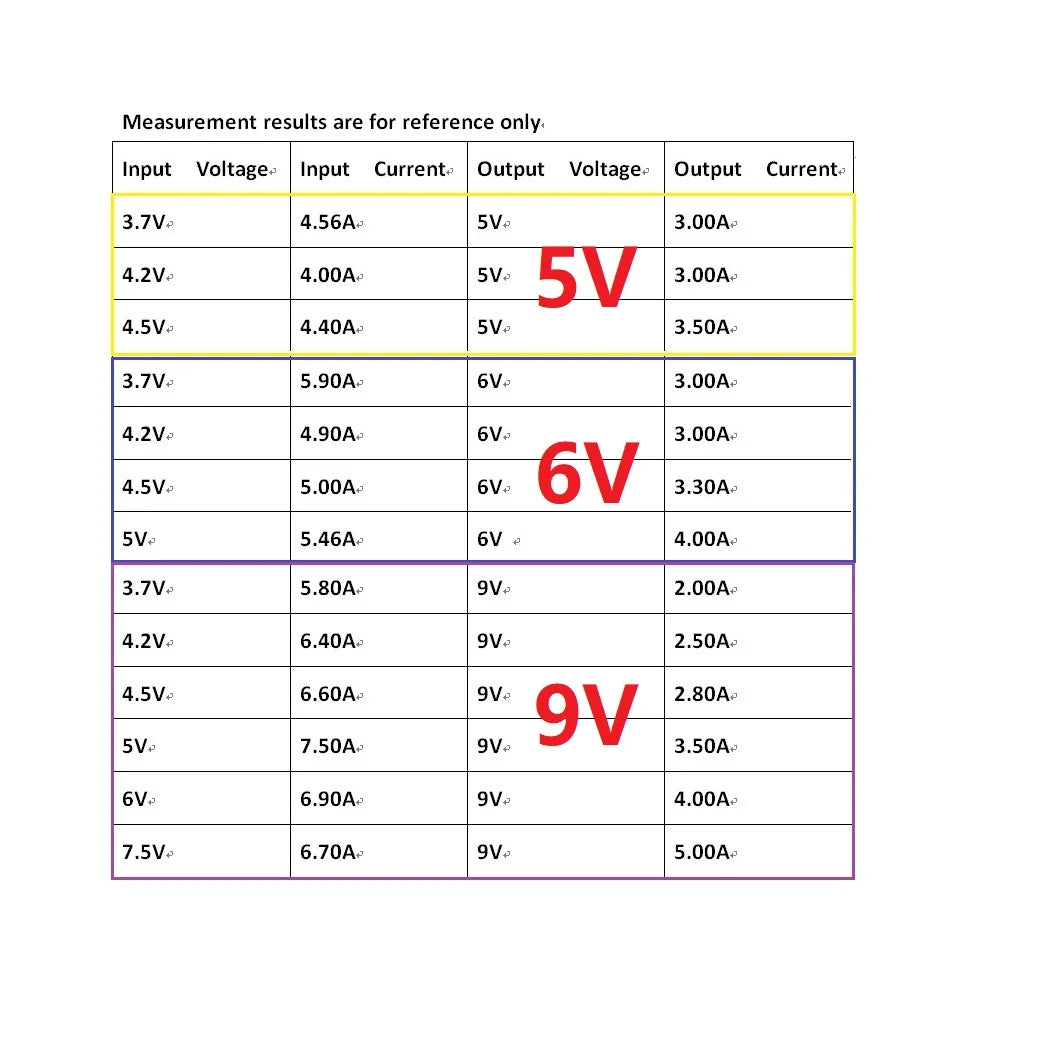

Maximum output : 5V/3.5A(Maximum power 17W,See the table below for details)

Output 6V :
Input voltage DC 3.7 ~ 5V, output DC 6V±3%
Maximum output : 6V/4A(Maximum power 24W,See the table below for details)


Output 9V :
Input voltage DC 3.7 ~ 8V,output DC 9V±3%
Maximum output : 9V/5A(Maximum power 45W,See the table below for details)

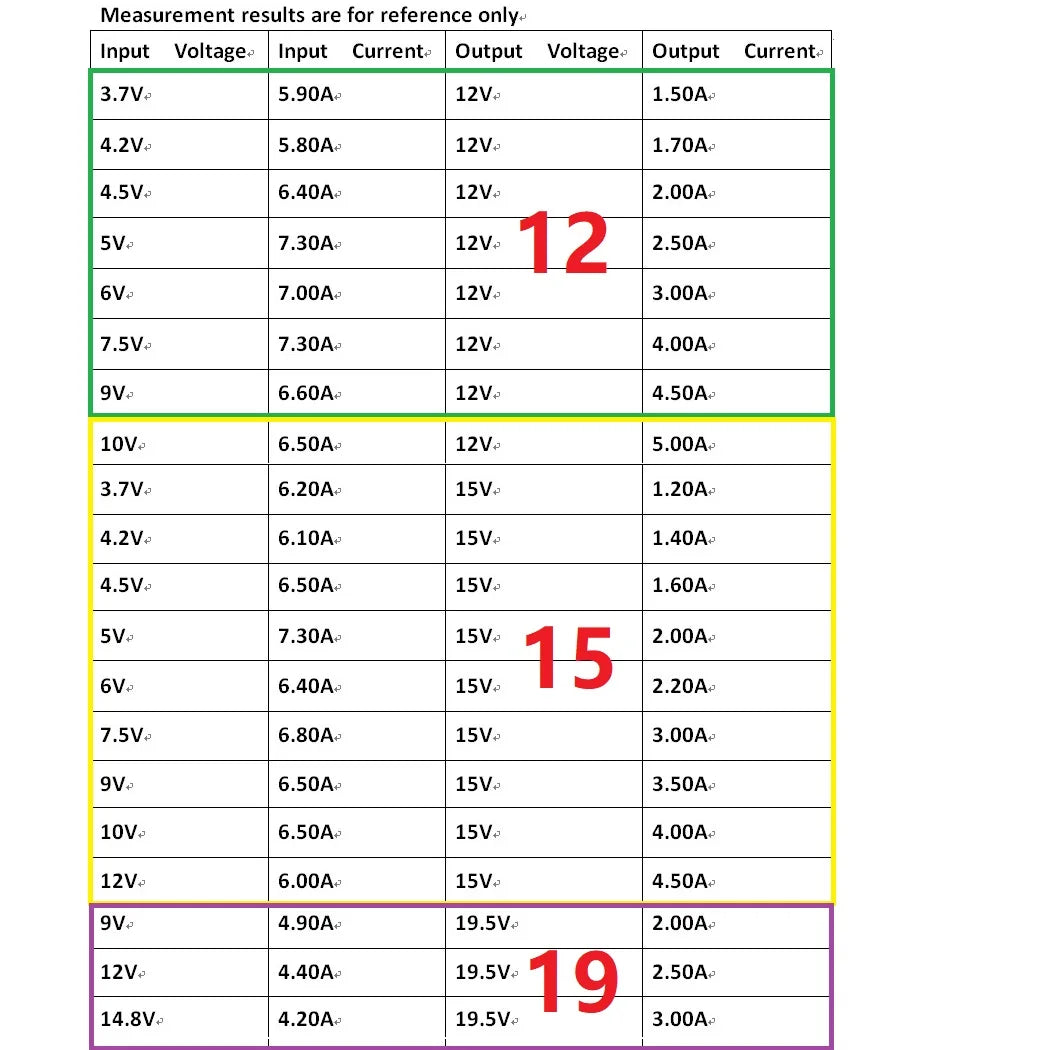

Output 12V :
Input voltage DC 3.7 ~ 11V,output DC 12V±3%
Maximum output : 12V/5A(Maximum power 60W,See the table below for details)

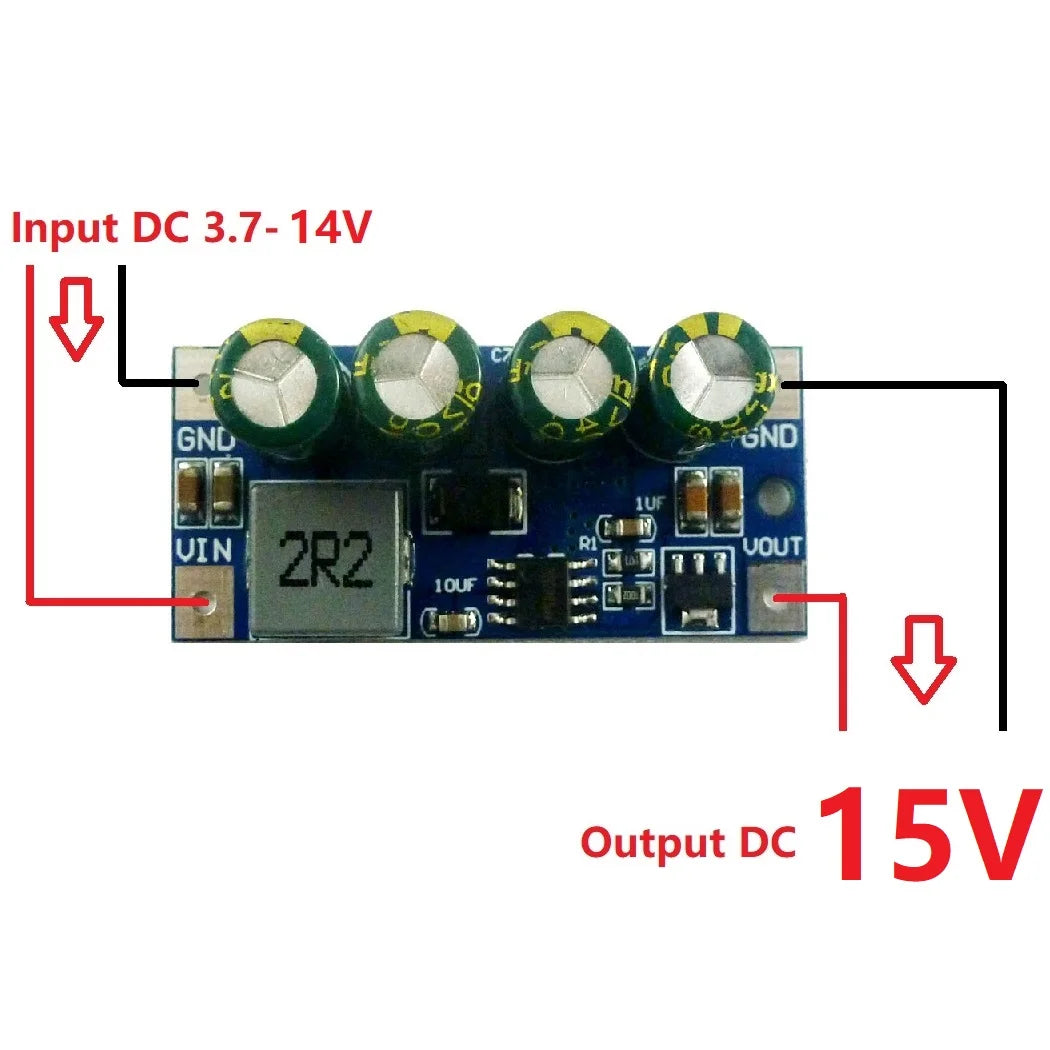

Output 15V :
Input voltage DC 3.7 ~ 14V,output DC 15V±3%
Maximum output : 15V/4.5A(Maximum power 67W,See the table below for details)

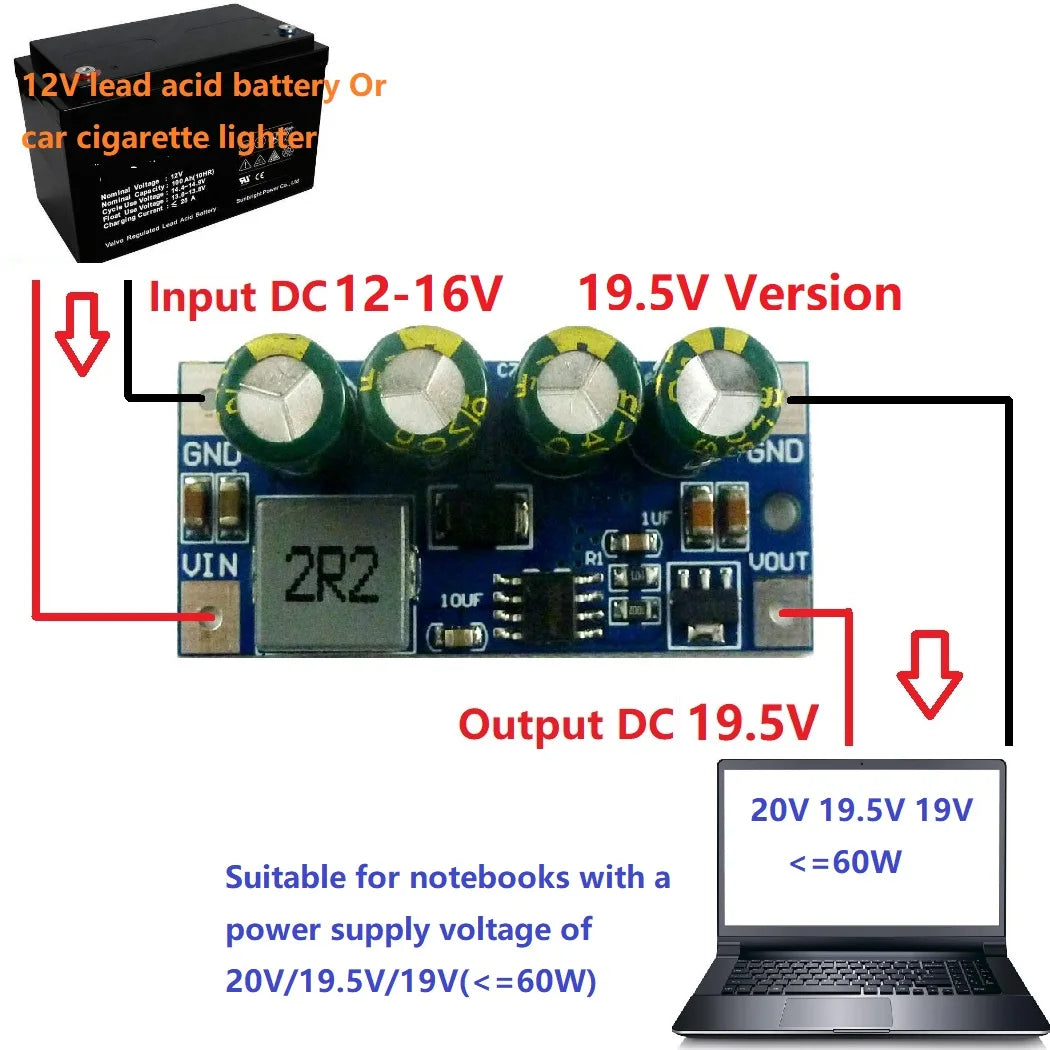

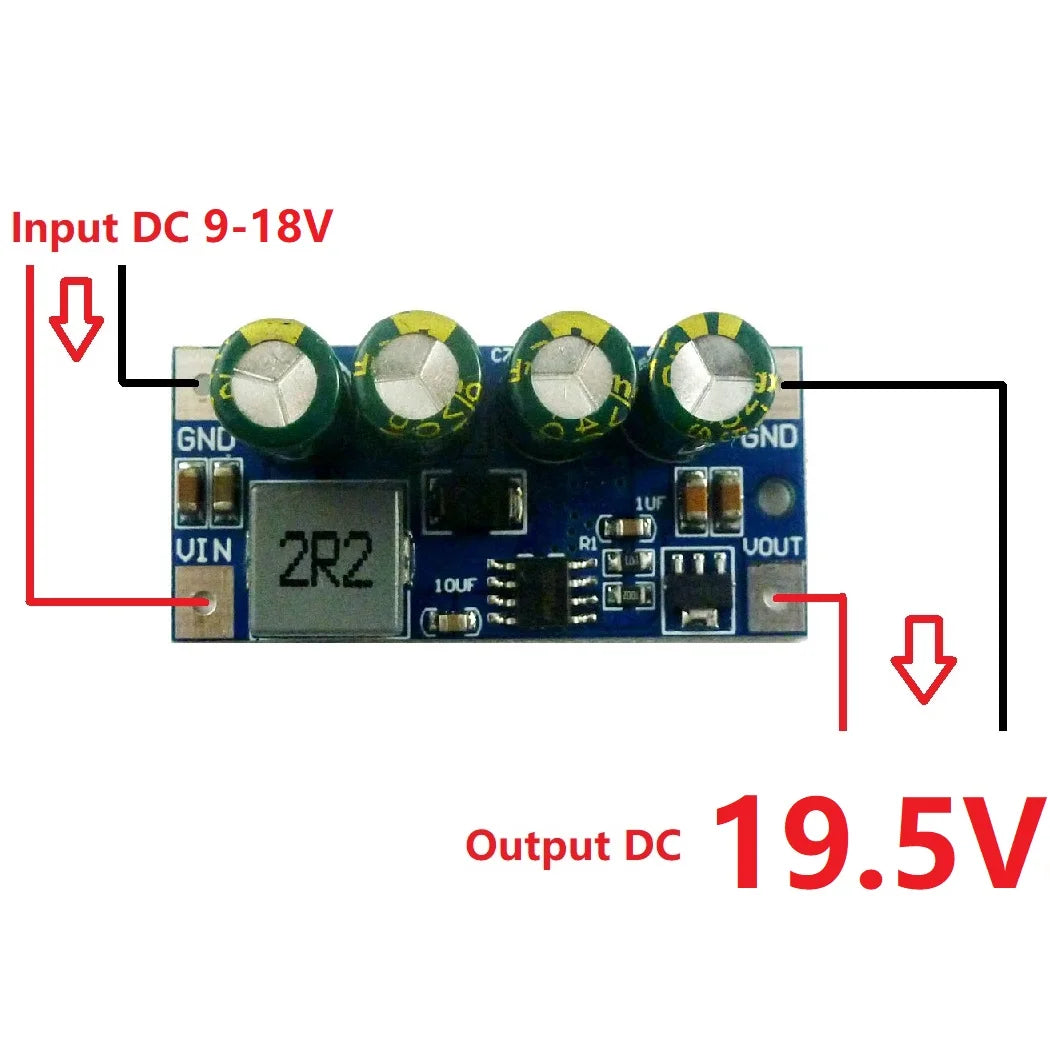

Output 19.5V :
Input voltage DC 9 ~ 18V,output DC 19.5V±3%
Maximum output : 19.5V/3A(Maximum power 58W,See the table below for details)



Attention :

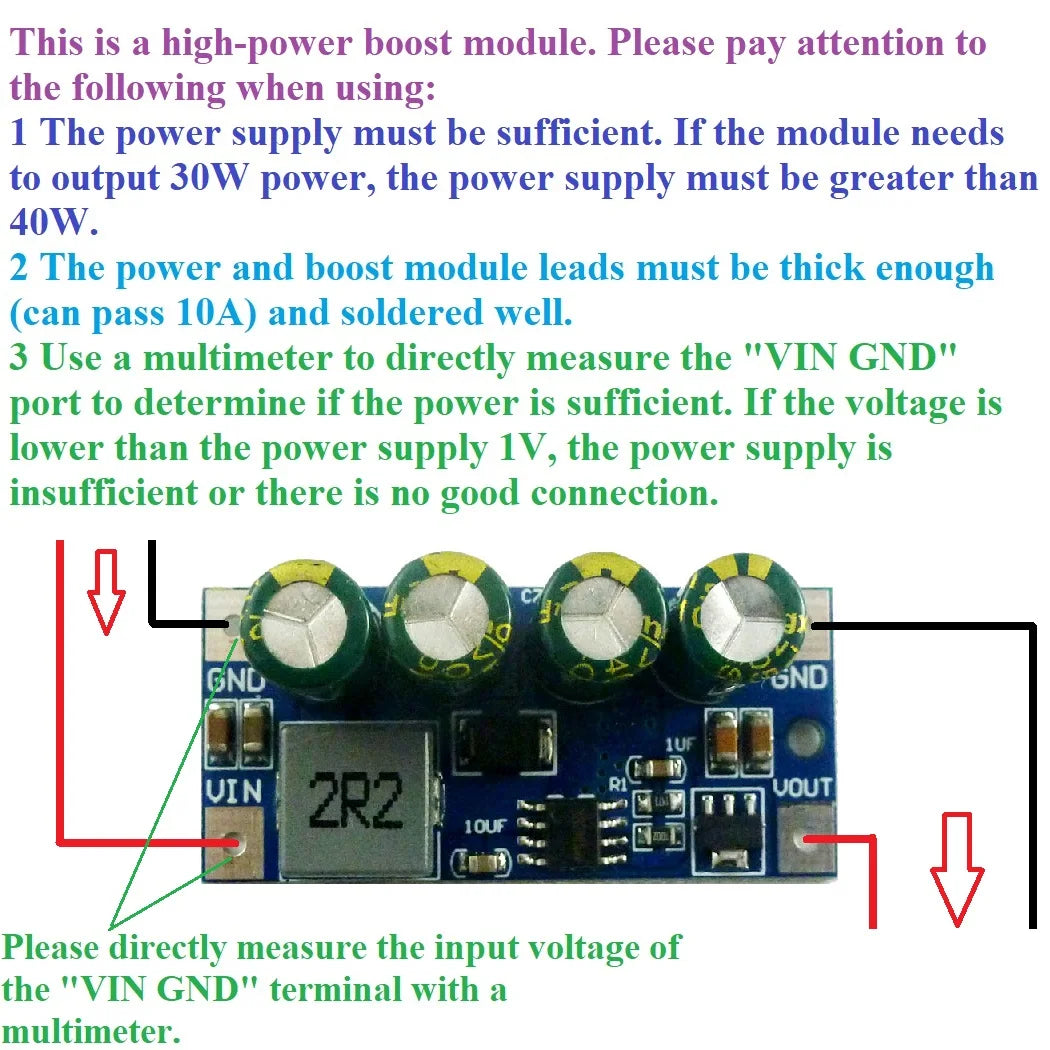

This is a high-power boost module. Please pay attention to the following when using:

1-  The power supply must be sufficient. If the module needs to output 30W power, the power supply must be greater than 40W.

2-  The power and boost module leads must be thick enough (can pass 10A) and soldered well.

3-  Use a multimeter to directly measure the ''VIN GND'' port to determine if the power is sufficient. If the voltage is lower than the power supply 1V, the power supply is insufficient or there is no good connection.

4-  Input voltage can not be greater than the maximum input range
5-  Output power can not be greater than the maximum load for a long time
6-  Input power must be greater than the output power, because the power consumption of the module itself

Applications:

for 12V lead acid battery
for Car cigarette lighter
PTZ CCTV IP camera
laptop notebook PC
Smart home / home automation
WIFI Router Switch Network equipment
LED illumination
Solar Panel
