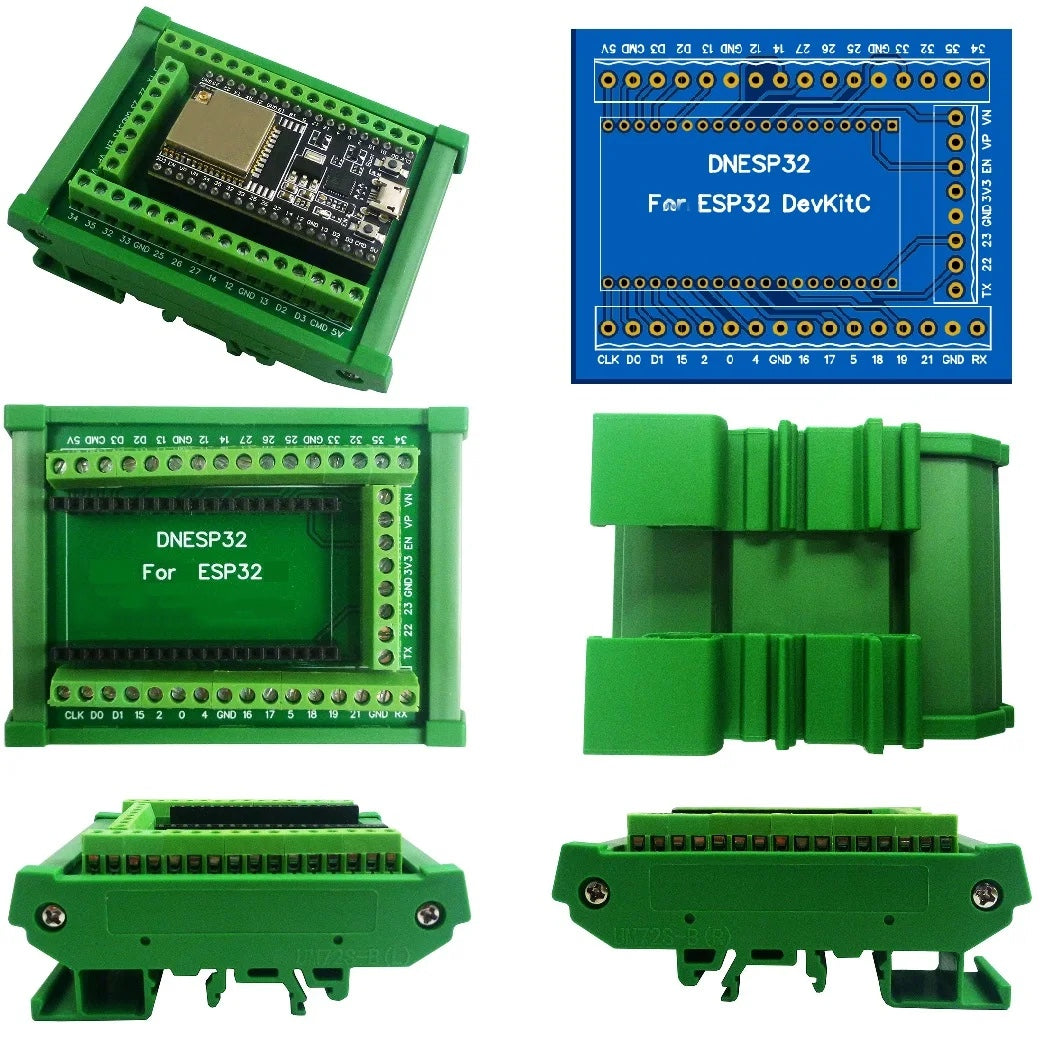

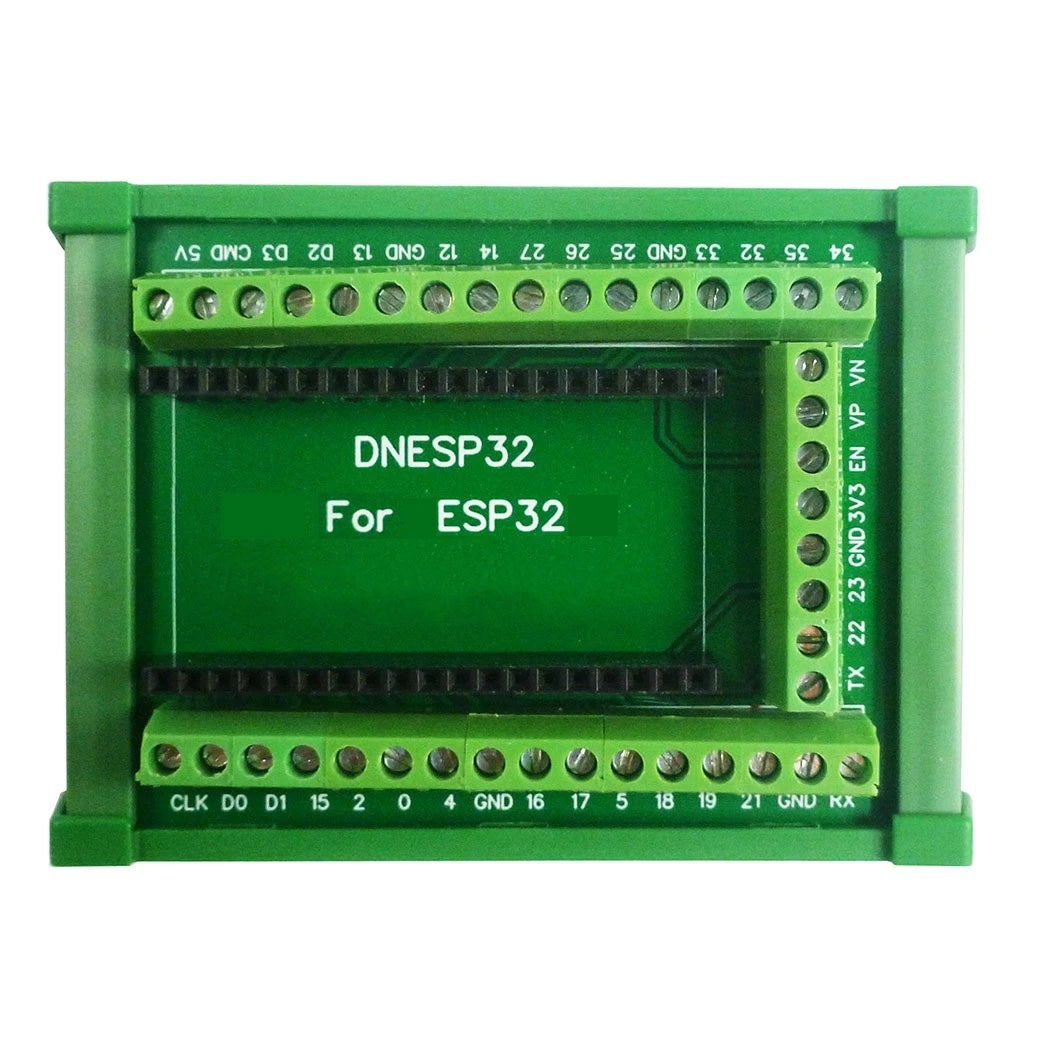

DIN Rail Terminal Adapter module for ESP32/Arduino

Specifications:

Application: Electric Toy

Choice: yes

Condition: New

Dissipation Power: 0.5W

Model Number: DNESP32

Operating Temperature: -40-85

Package: SMD

Supply Voltage: DC 5-9V

Type: Voltage Regulator

is_customized: Yes

semi_Choice: yes

Product Name:

DIN Rail Mount Screw Terminal Block Adapter Module For Arduino ESP32S ESP-WROOM-32 DevKitC ESP32 PLC Industrial Controllers

Package inlcuded:
1 Pcs DNESP32 DIN PinBoard for ESP32 DevKitC(only board or with shell)
(does not include theESP32 DevKitC module)

Illustrate:
Terminal spacing: 3.96mm.
Terminal Blocks: Wire Range 26-16AWG, Strip Length 3.96mm, Metric M2/M2.5 Slotted Screws.

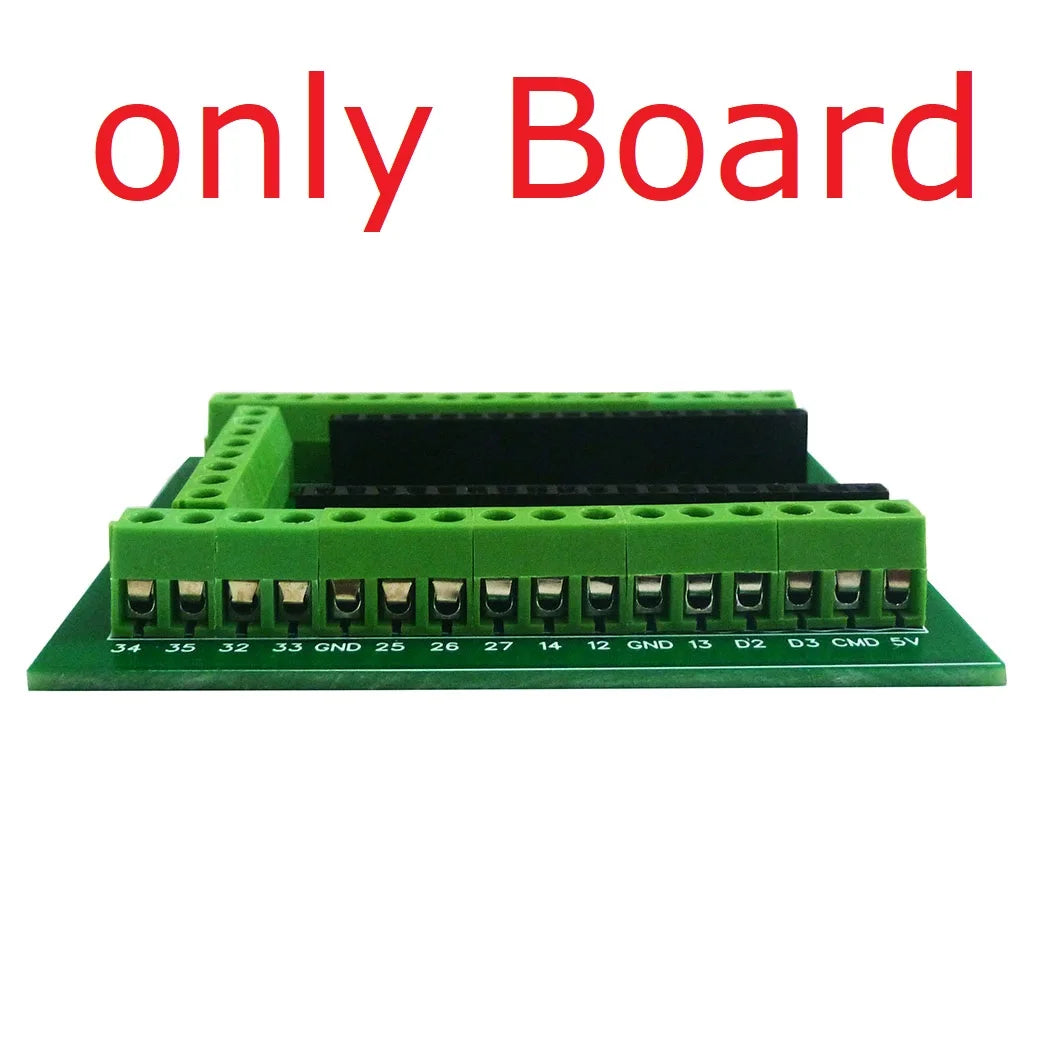

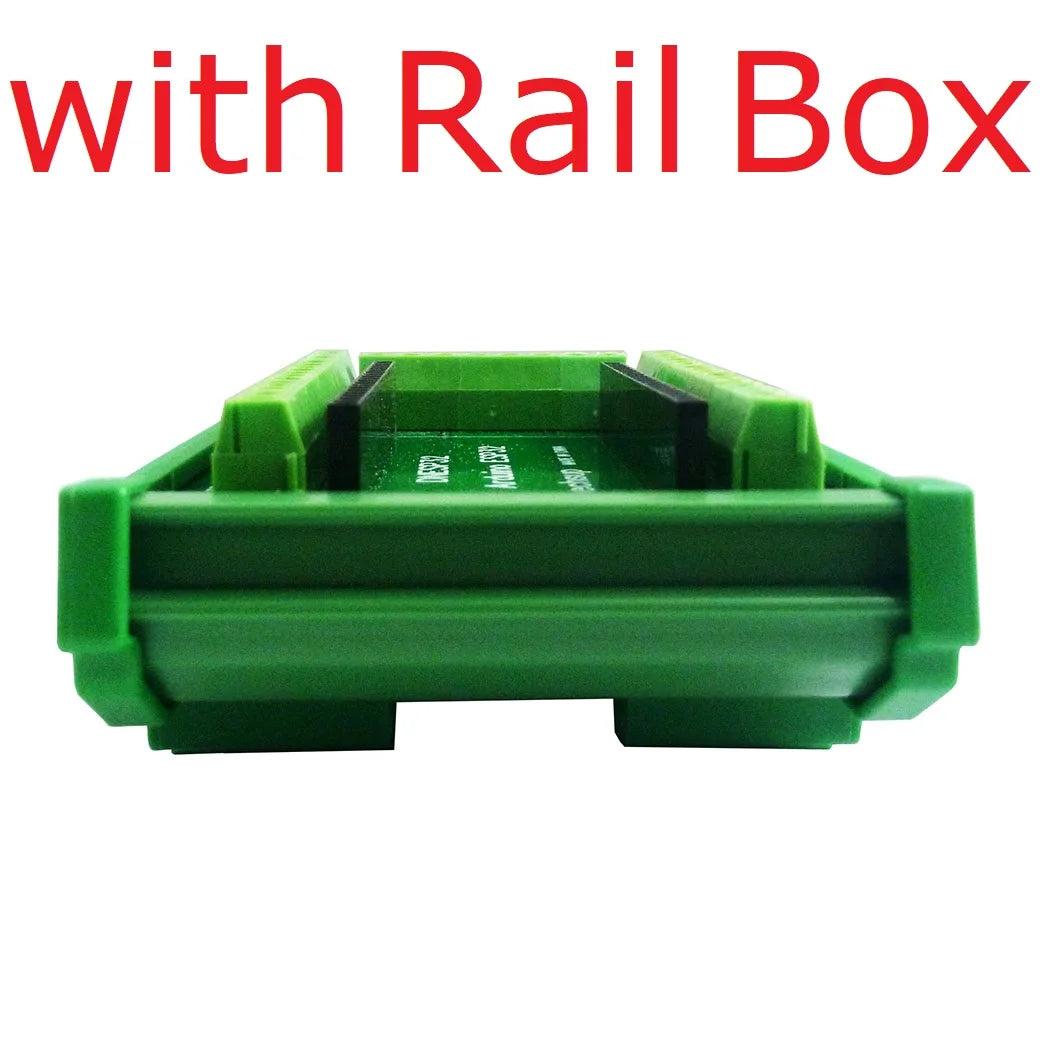

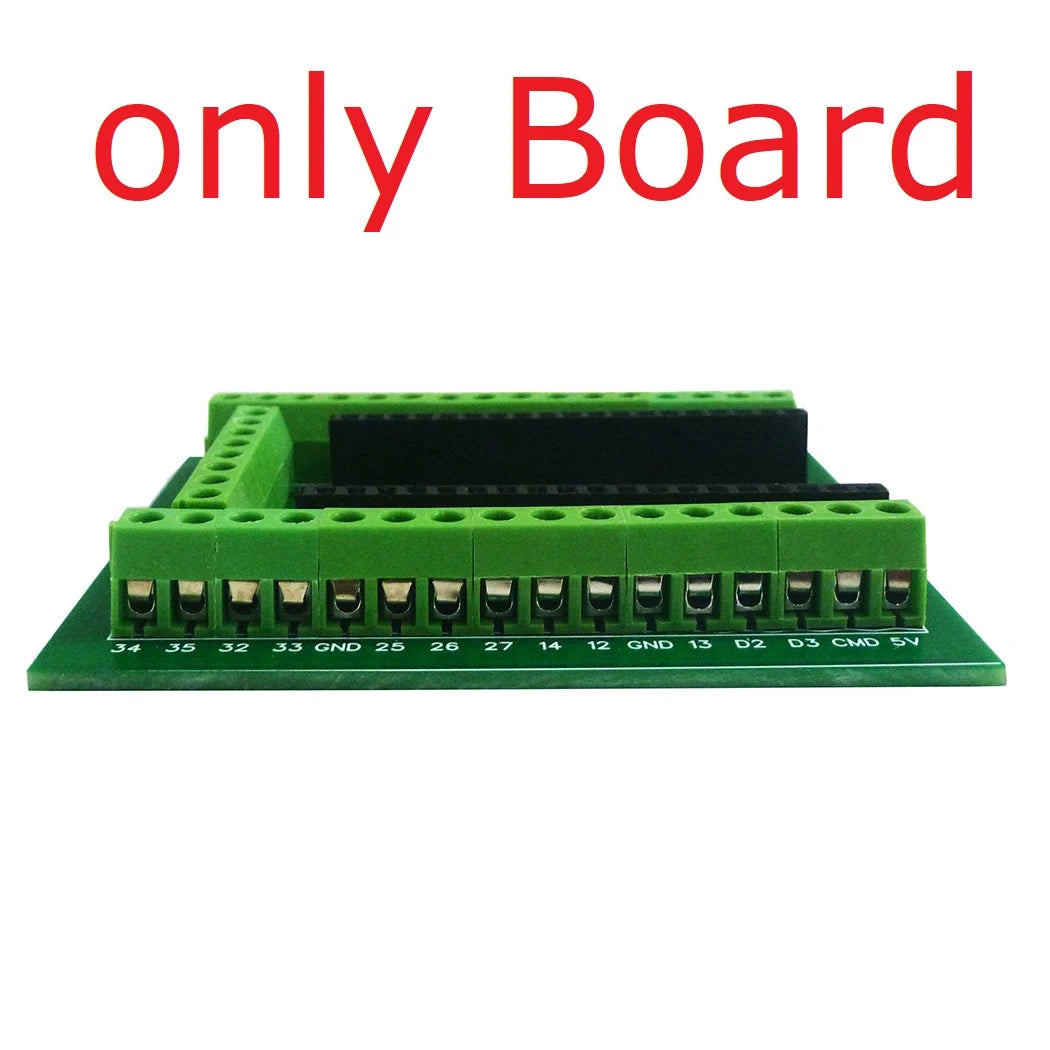

Size: 58*72 * 8mm(only Board);61*85 *37mm(with Rail Box)
Weight: 36.5g(only Board),90g(with Rail Box)


Use:

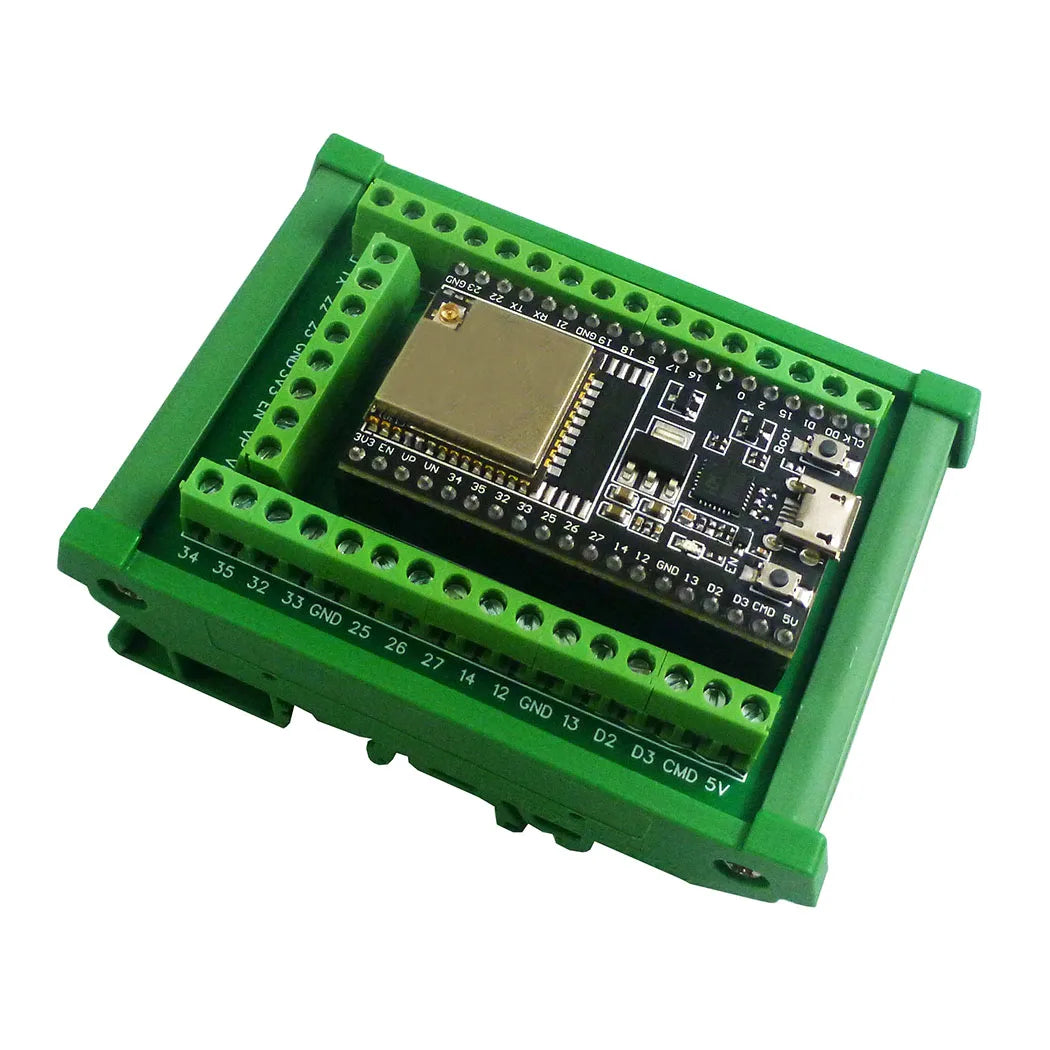

DIN Rail Mount Screw Terminal Adapter Module for ESP-32S ESP-WROOM-32 ESP32 WIFI Dual Core CPU Development Board.

With this adapter modules, you can easily extend your ESP32 DevKitC projects to industrial control applications.

Notice:
This product does not include the ESP32 DevKitC Board

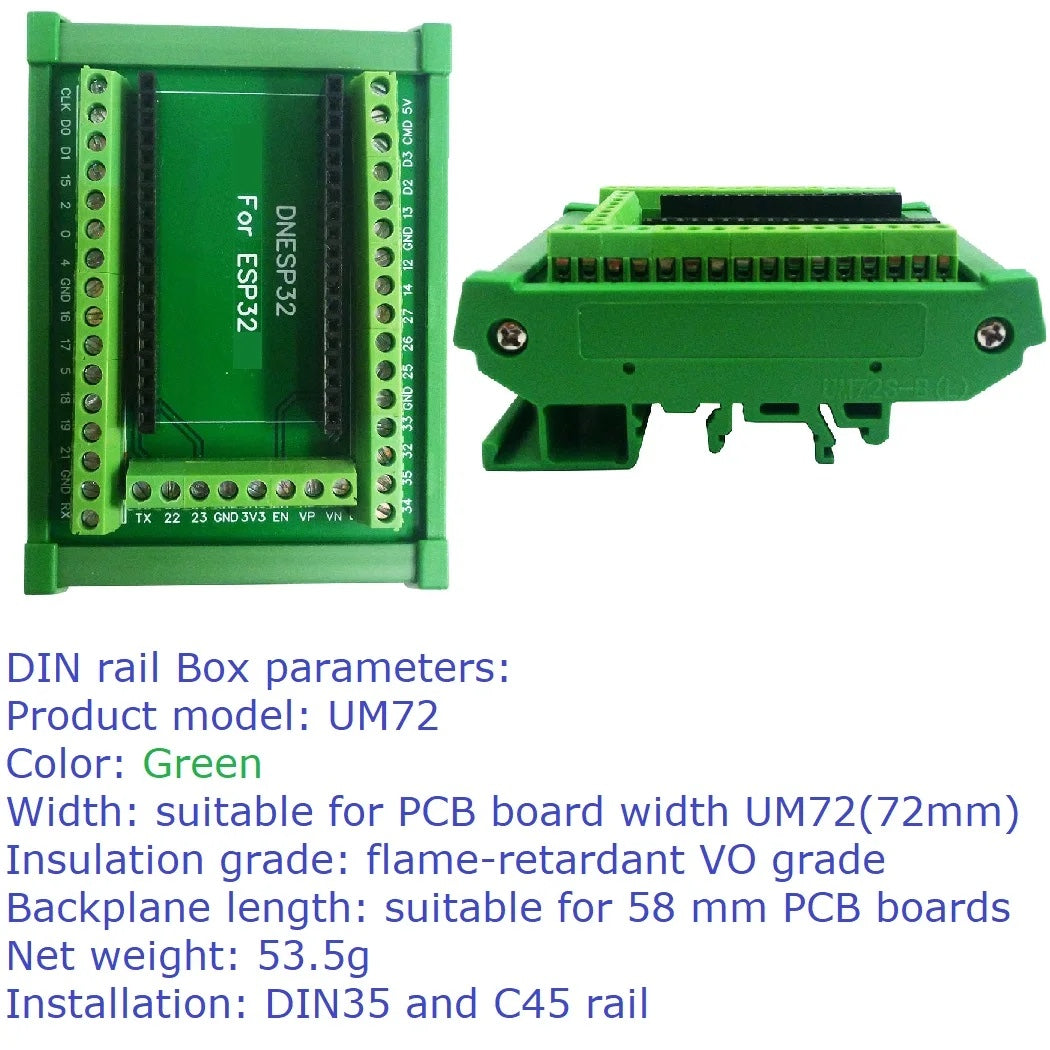

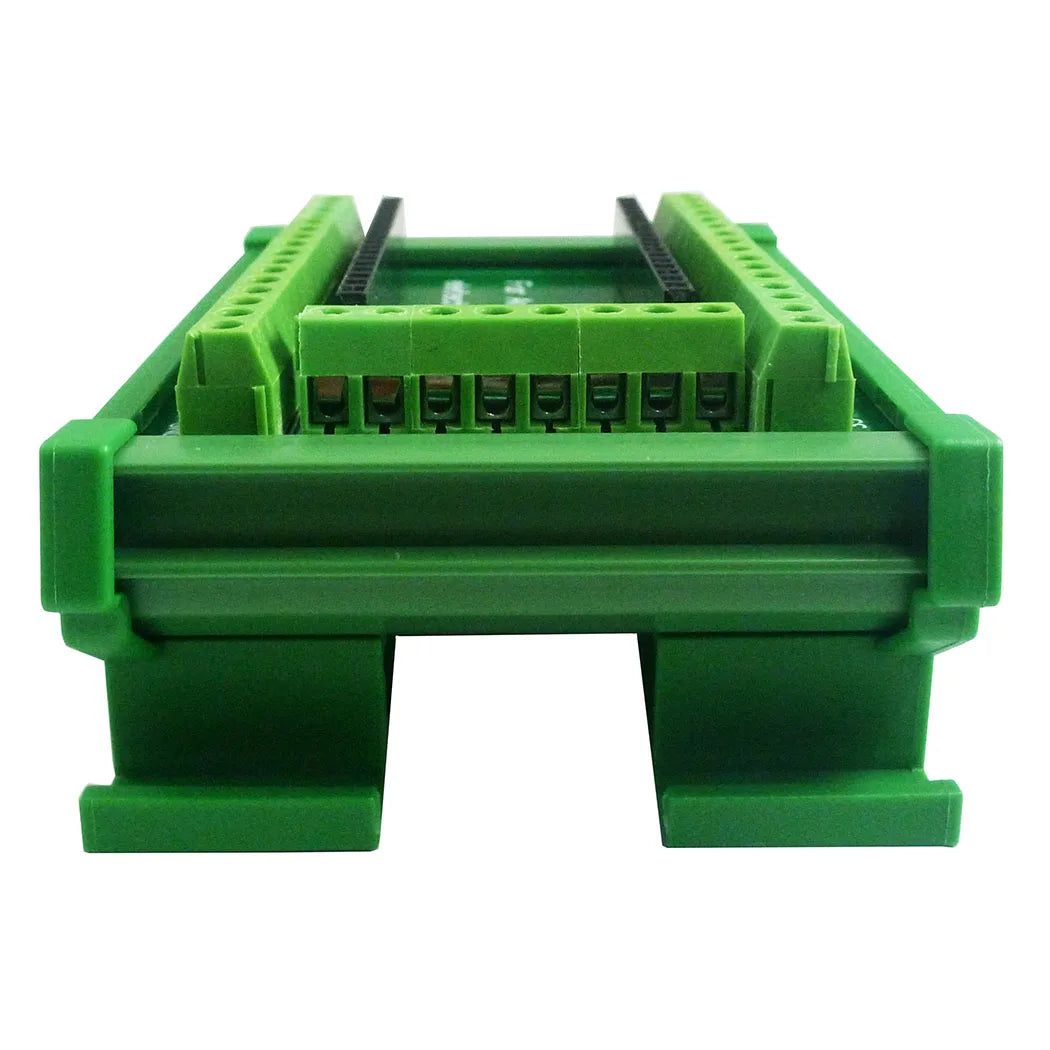

DIN rail Box parameters:
Product model: UM72
Color: Green
Width: suitable for PCB board width UM72(72mm)
Insulation grade: flame-retardant VO grade
Backplane length: suitable for 58 mm PCB boards
Net weight: 53.5g
Installation: DIN35 and C45 rail
