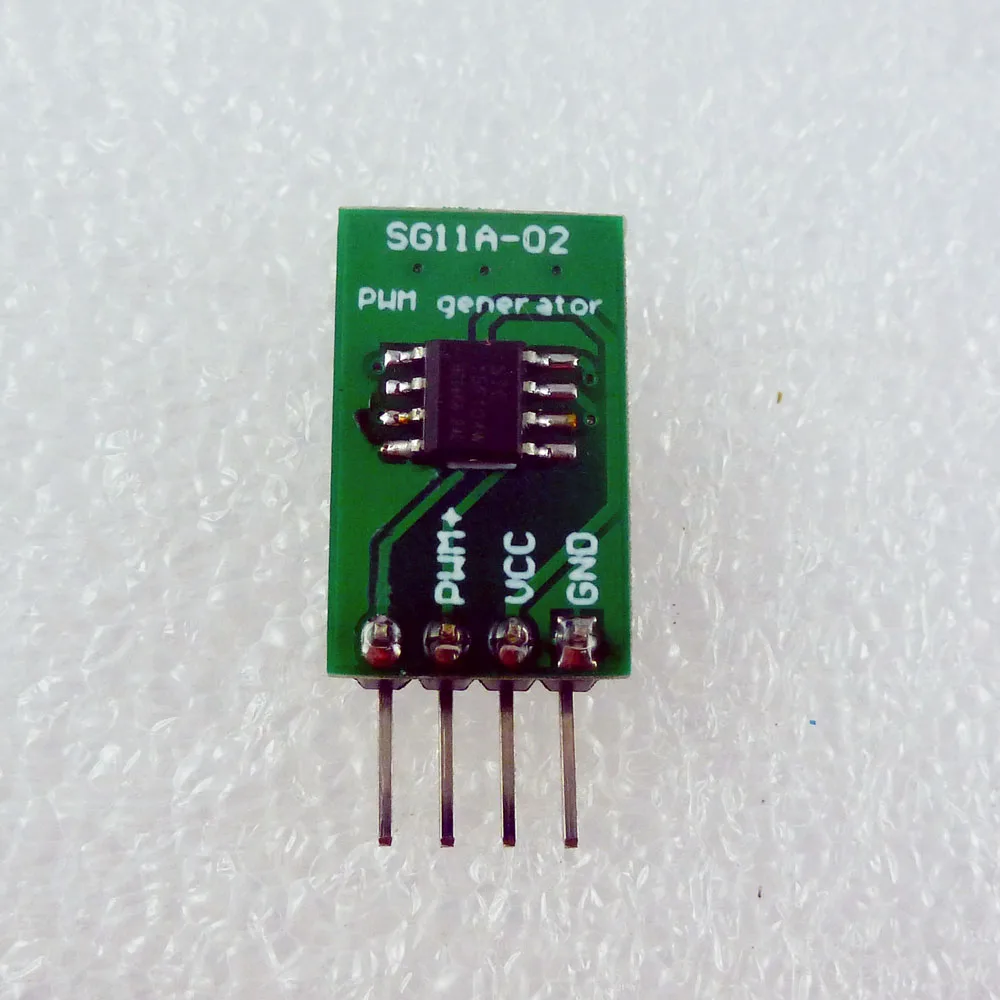

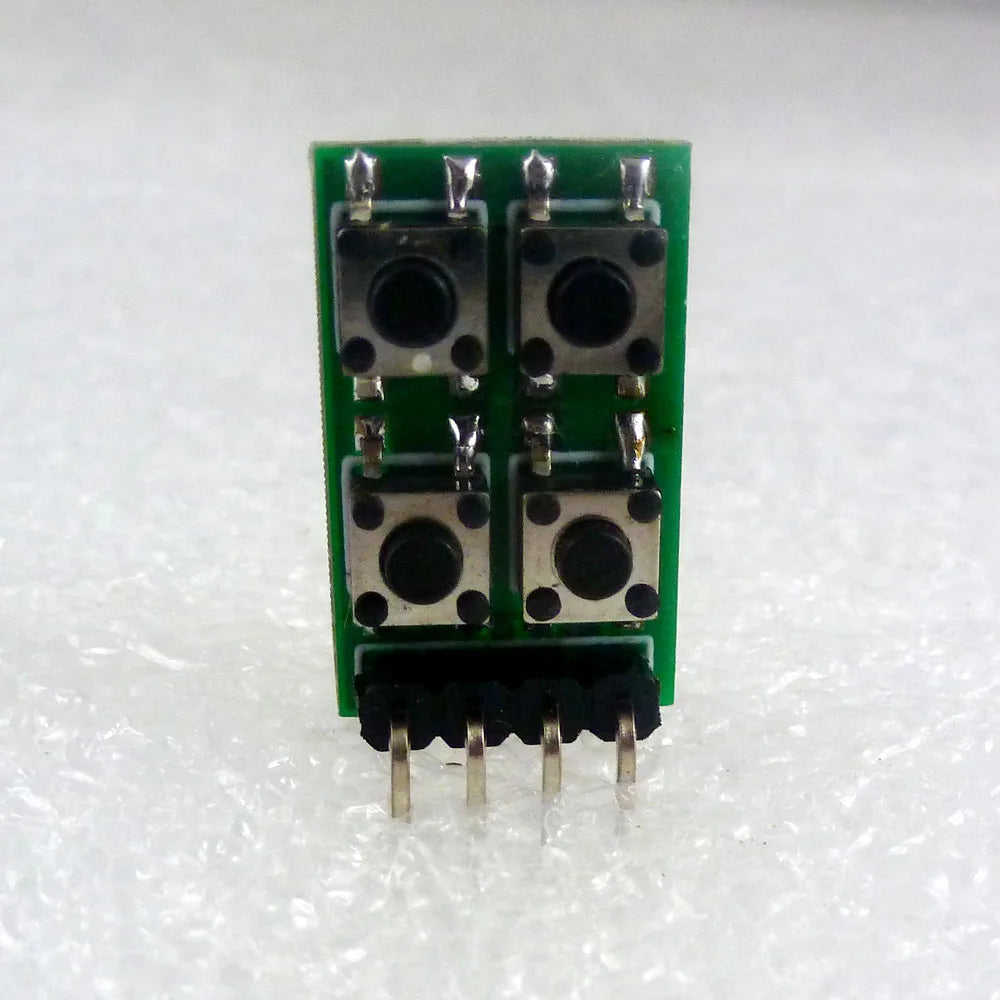

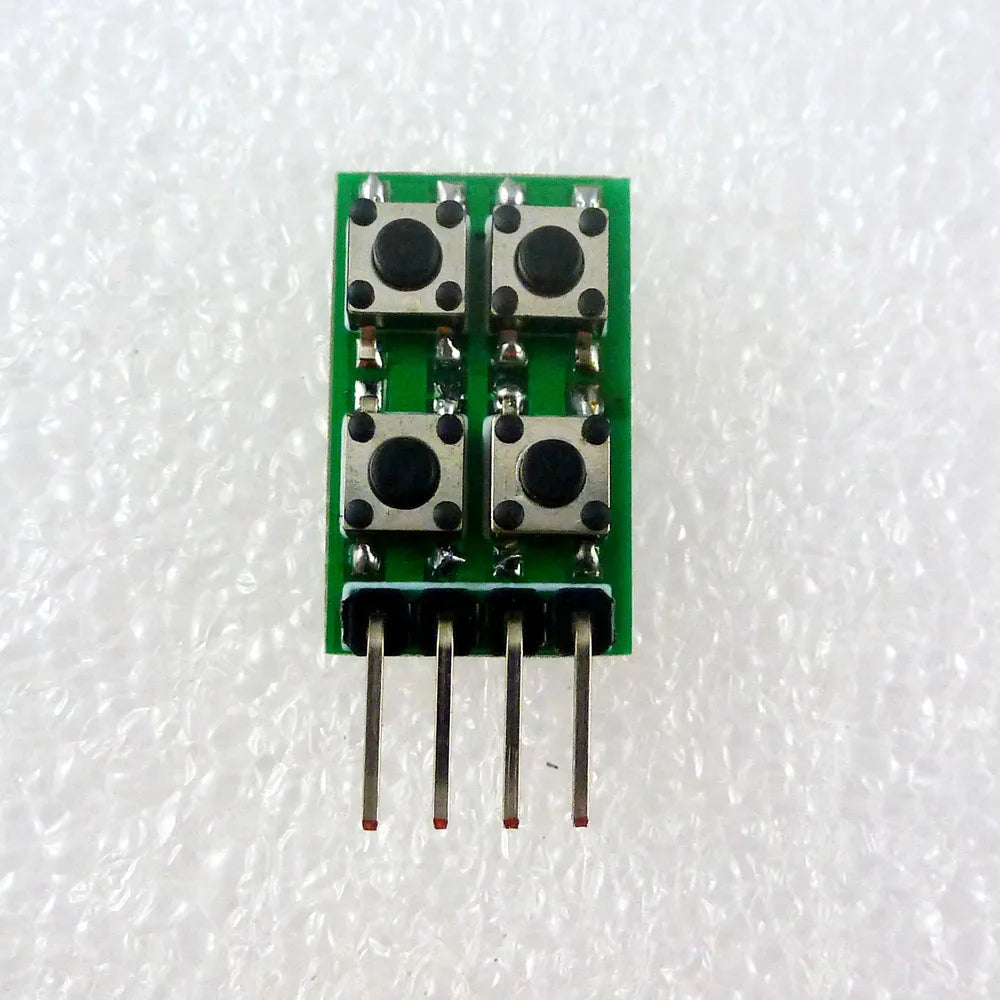

Adjustable PWM Signal Generator – SG11A02

Specifications:

Application: Electric Toy



Choice: yes

Condition: New

Dissipation Power: 0.1W

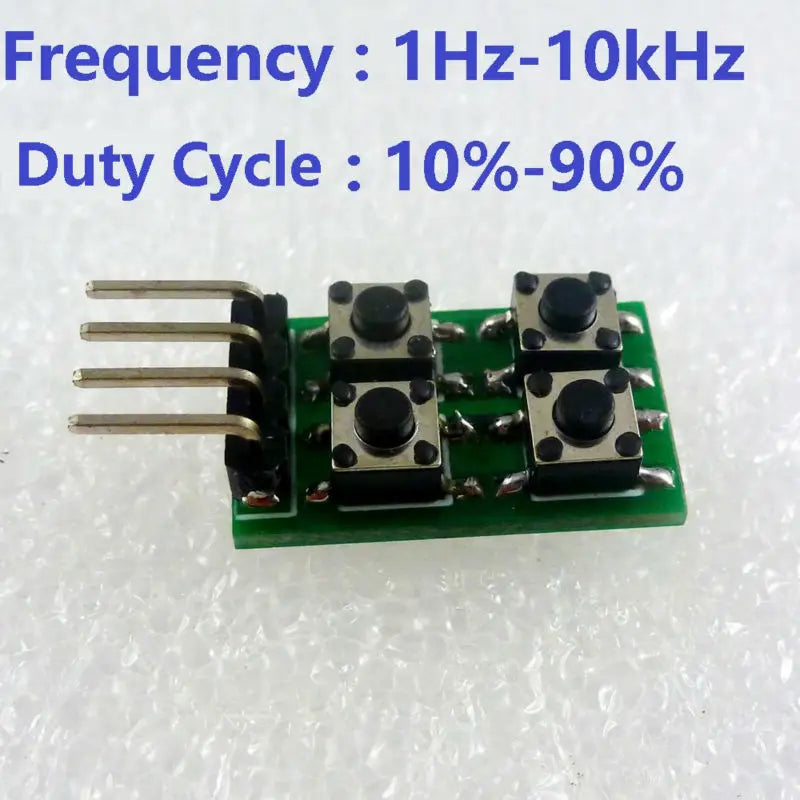

Frequency: 1Hz-10Khz

High-concerned Chemical: None

Model Number: SG11A02

Operating Temperature: -20-80

Pulse: 10%-90%

Supply Voltage: dc 5V

Type: Module

is_customized: Yes

semi_Choice: yes



Product Name:

1-10kHz Duty Cycle & Frequency Adjustable PWM Square Wave Pulse Generator Module replace NE555 LM358 CD4017 DDS  AD9850 AD9851



Package inlcuded:

1 x 1Hz~10Khz Duty Cycle & Frequency Adjustable signal generator

  Description:

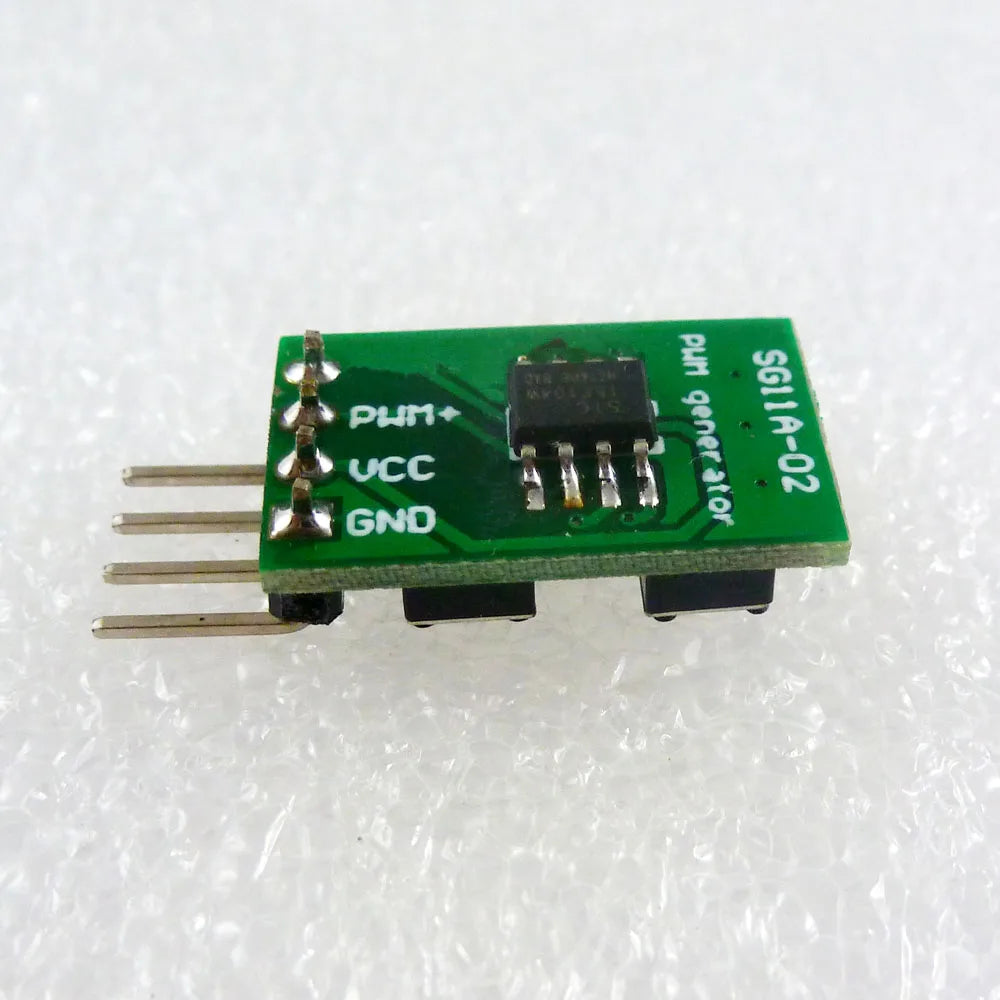

VCC  : DC 5V(3.8~5.5V) Power supply positive

GND  : Power Supply Negative

PWM+ : 1Hz-10kHz(Accuracy:0.6%) Square wave output(5V TTL Level,maximum output current 20MA).

PCB size : 19.4*12*6.7mm

Weight : 1.5g

power-down storage parameters

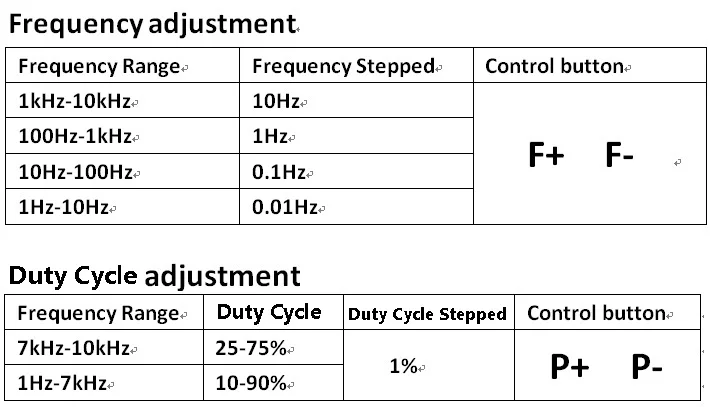

Frequency and Duty Cycle continuously adjustable, Stepping: See the image below



Use:

Short press (less than 2S) : Fine adjustment

Long press (more than 2S) : Quick adjustment

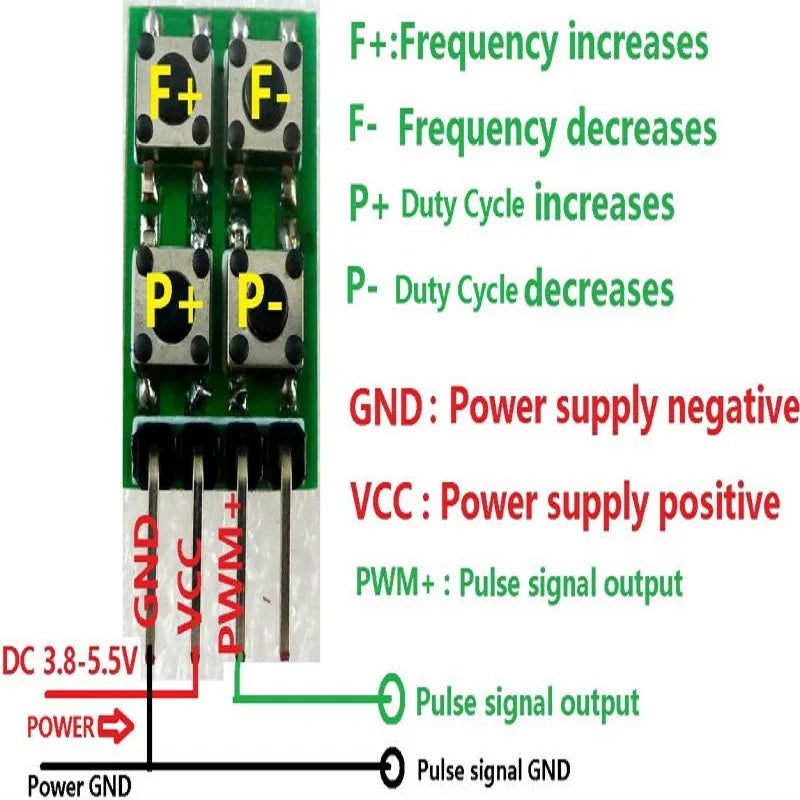

Wiring Diagram:

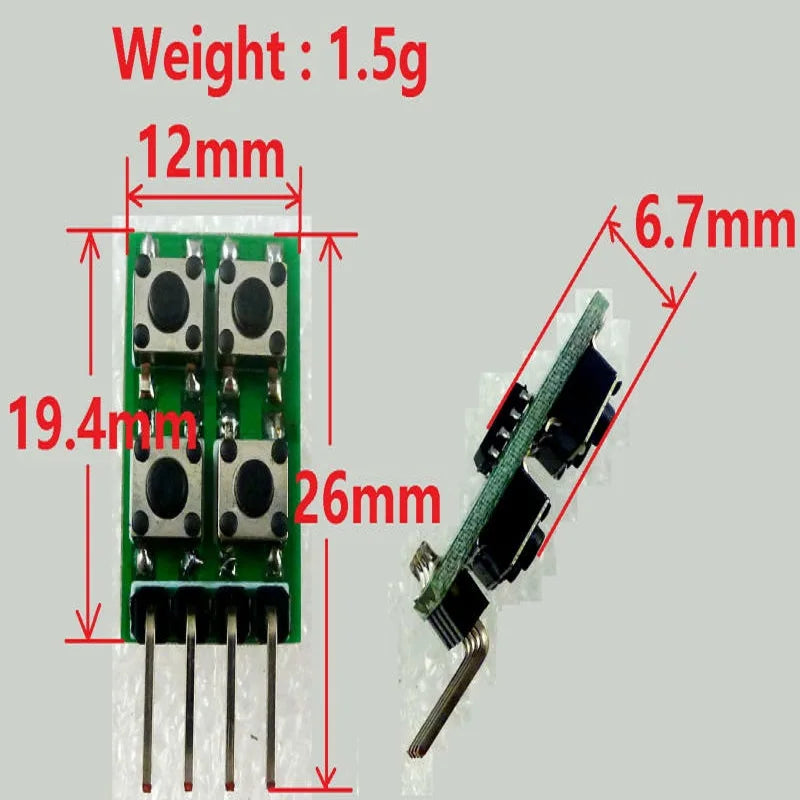

Size &Weight:

10khz Waveform:

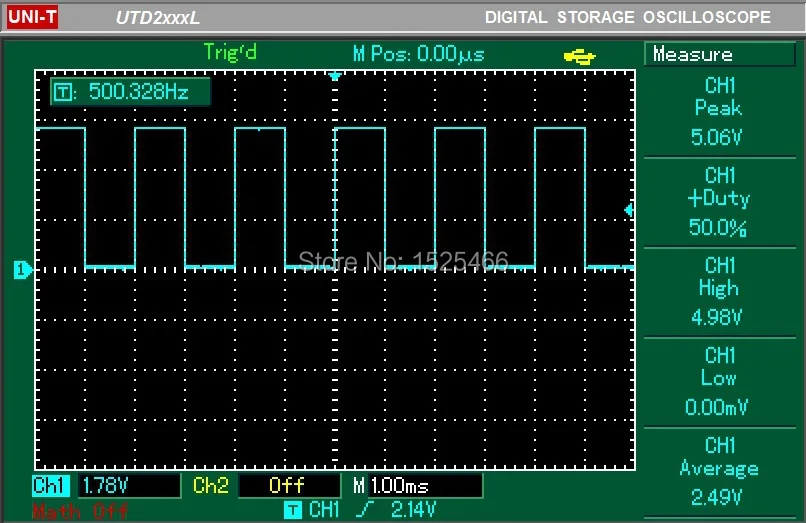

500Hz Waveform:

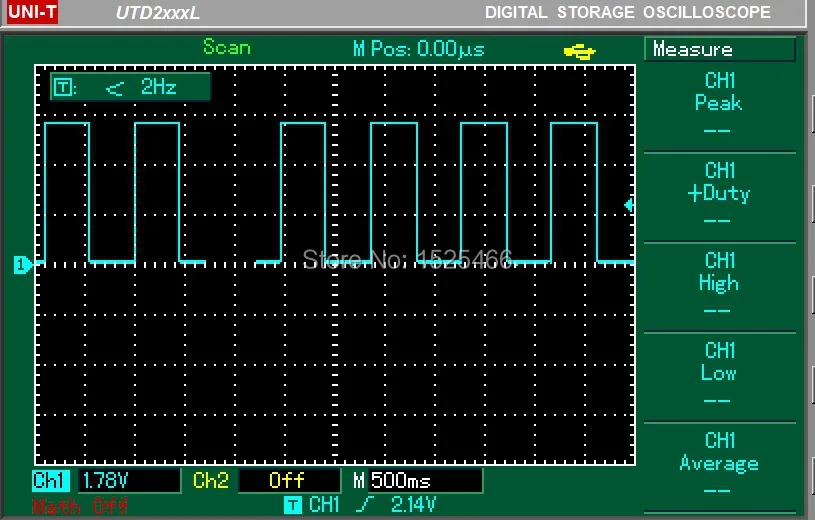

1Hz Waveform:
