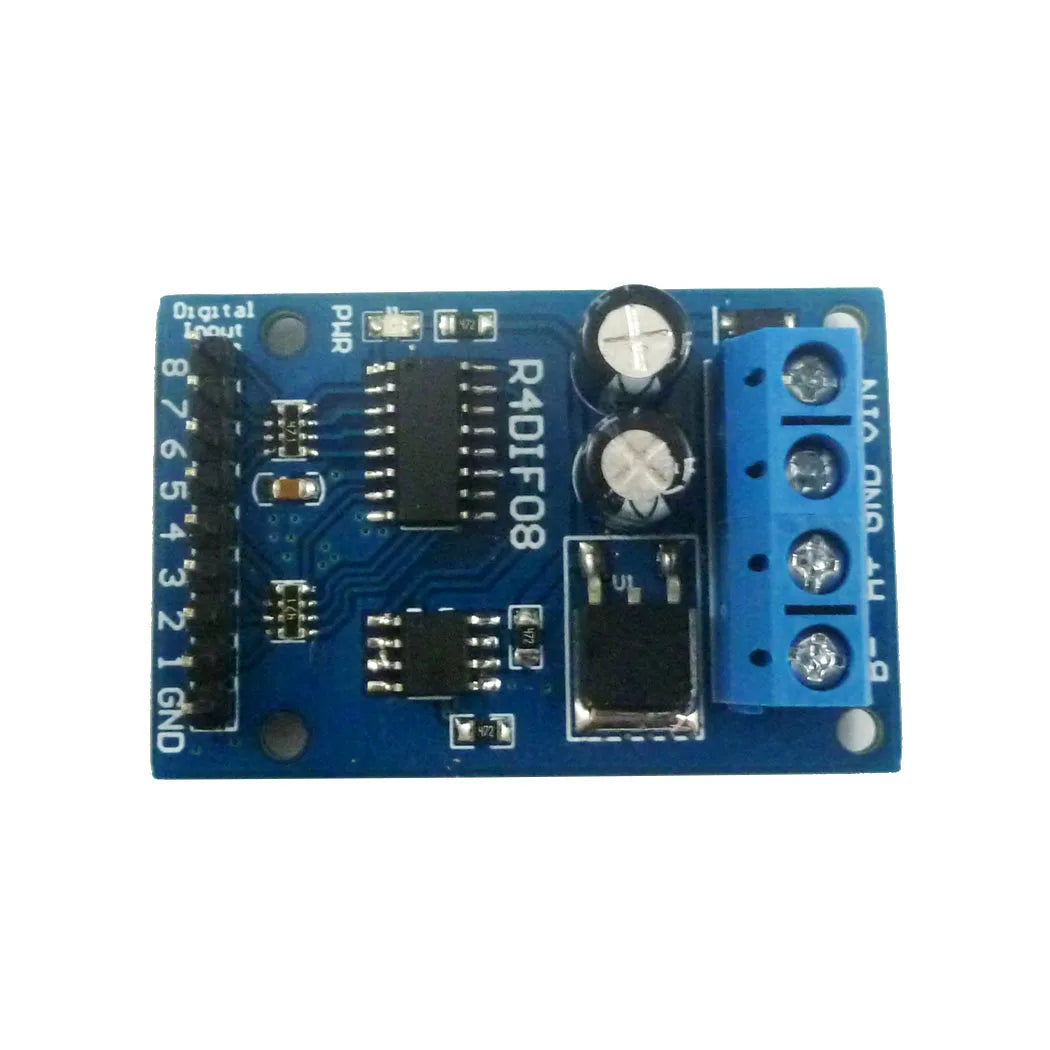

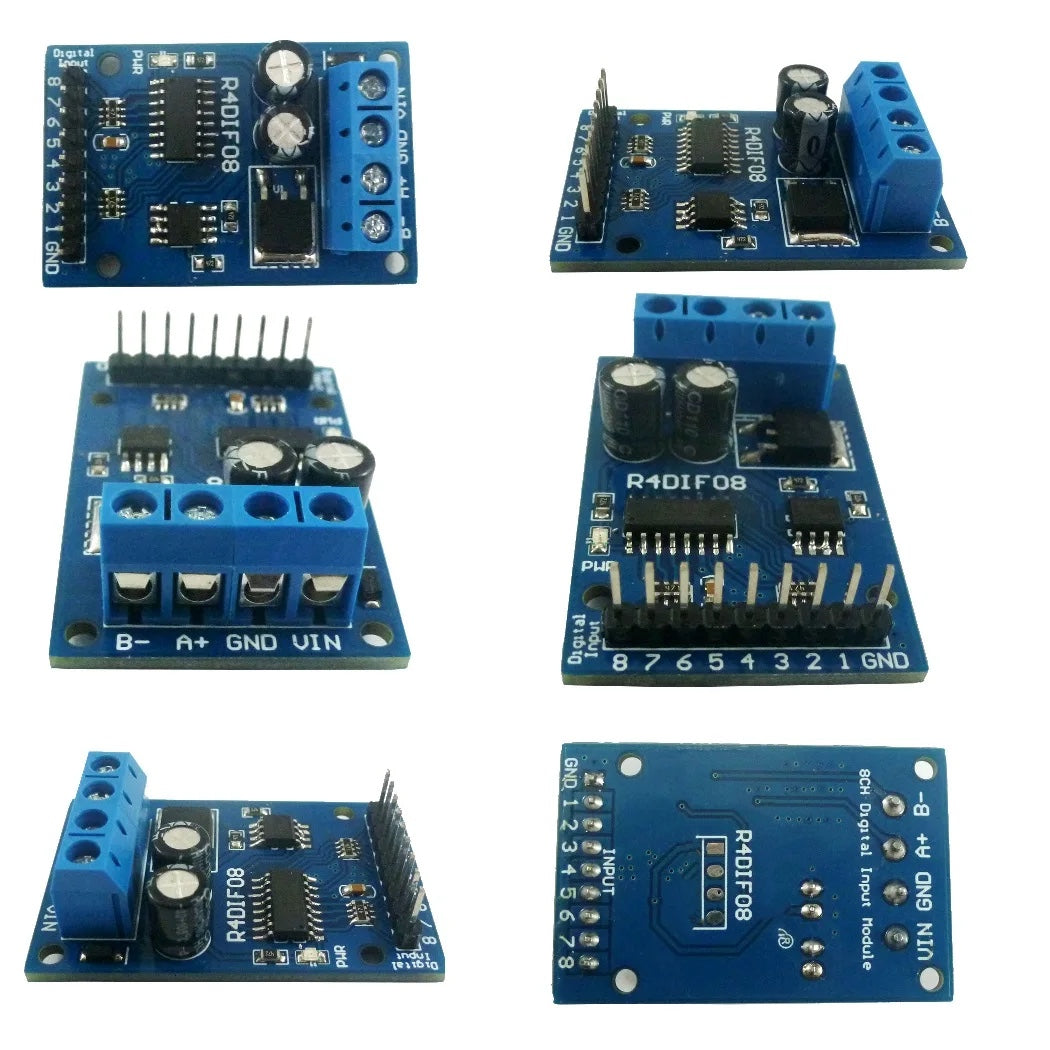

8-Channel RS485 IO Acquisition Board (TTL/CMOS)

Specifications:

Bus Interface: RS485

Choice: yes

Condition: New

Dissipation Power: 0.1W

Operating Temperature: -40-85

Operating Voltage: DC 6-24V

Package: SMD

Standby current: 12MA

Supply Voltage: DC 6-24V

Type: Logic ICs

is_customized: Yes

semi_Choice: yes

Product Name:

8 Digital Switch RS485 Acquisition Board TTL LvTTL CMOS IO for PLC Expand Relay Industrial automation

Package inlcuded:

1 x 8 bit Digital Switch TTL LvTTL CMOS IO Input UART RS485 Modbus

Description:
1-  Working voltage: DC 12V (6-24V)
2-  Working current: 8-12MA
3-  MODBUS RTU 03 06 command control mode

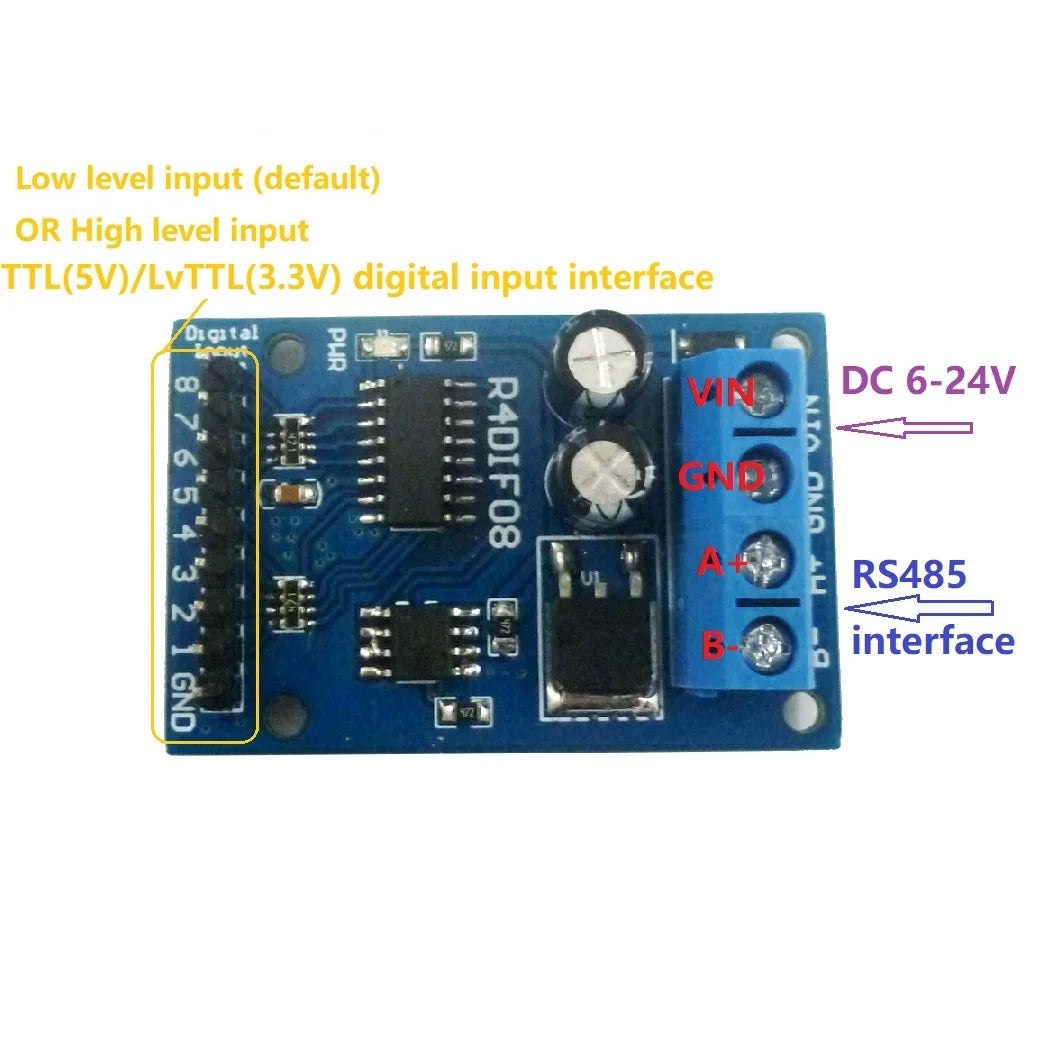

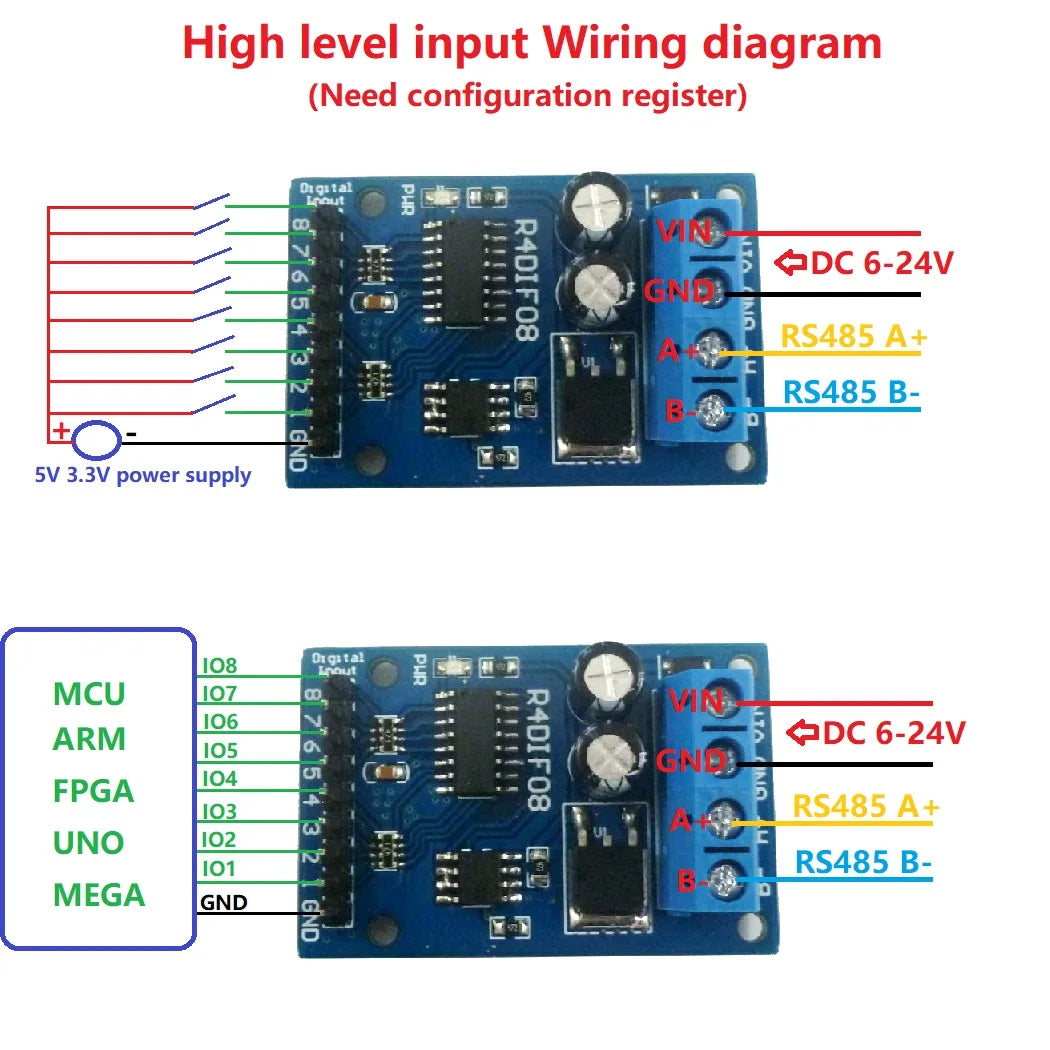

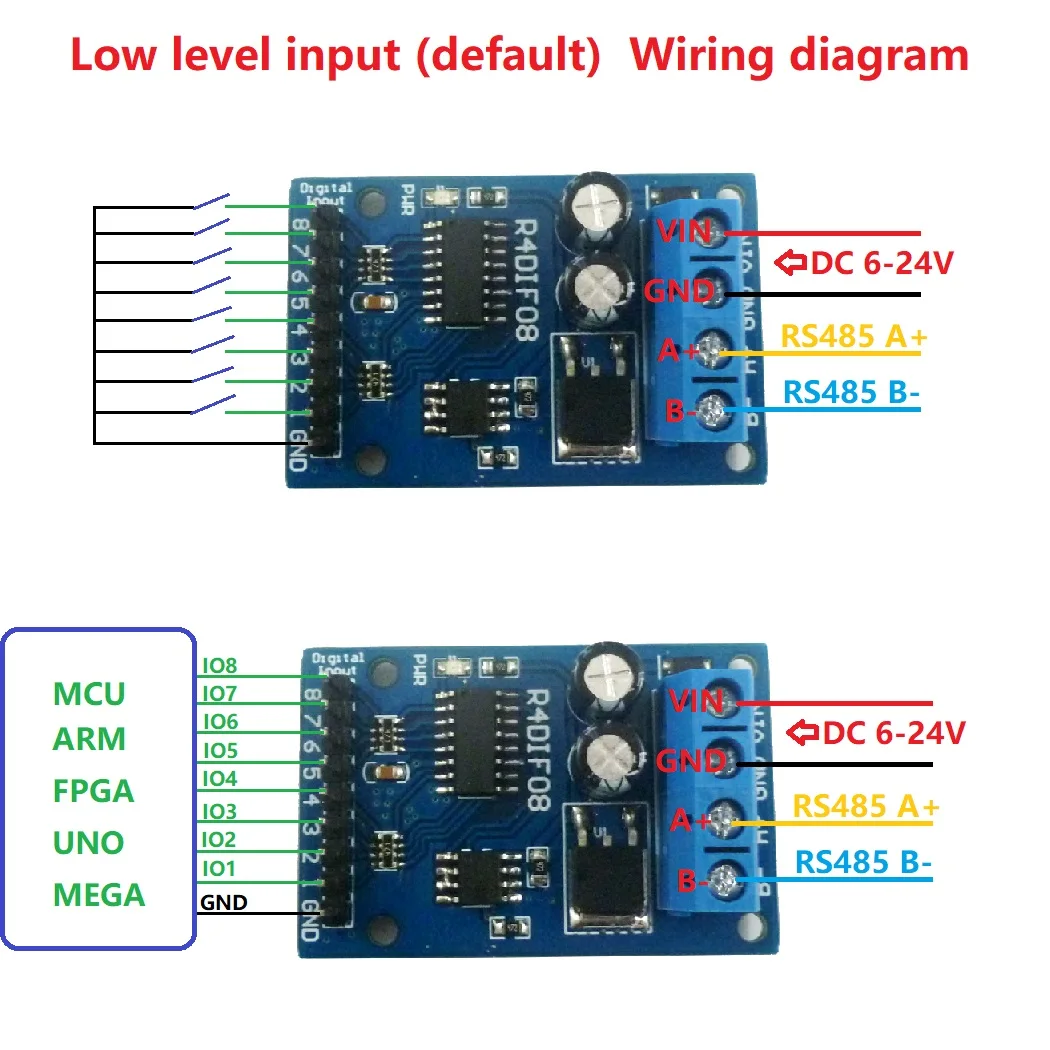

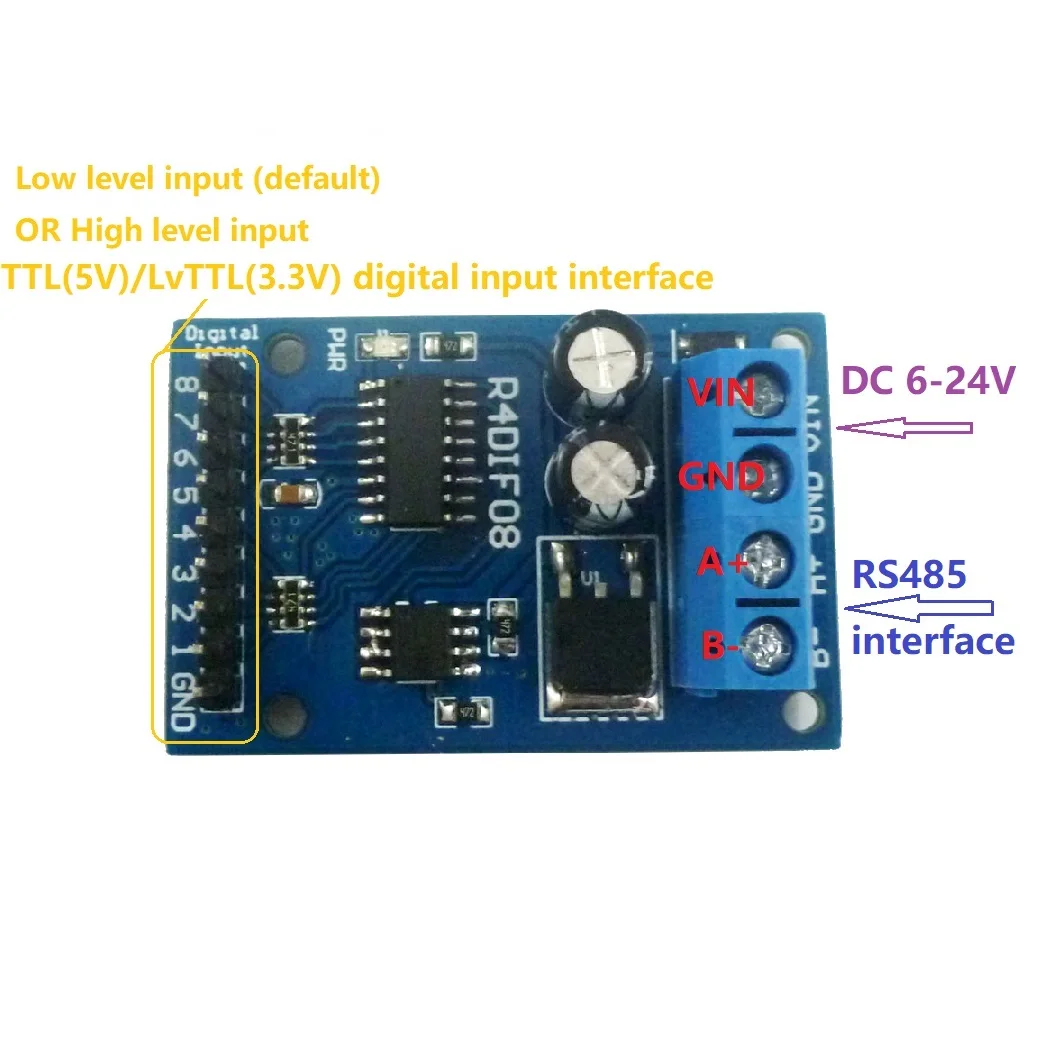

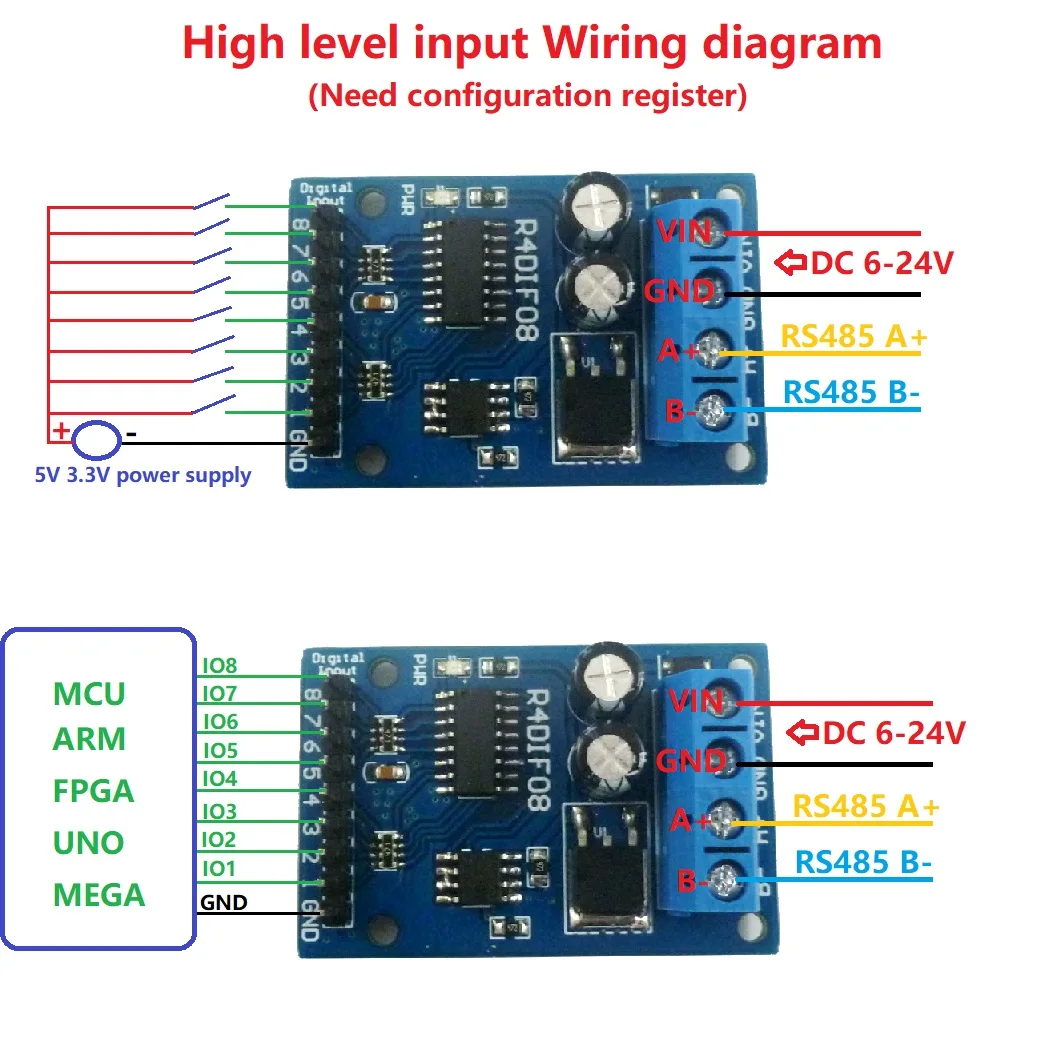

4-  There are two input modes: low-level input (default) and high-level input
5-  Input ports support TTL (5V) /LvTTL(3.3V) and compatible level

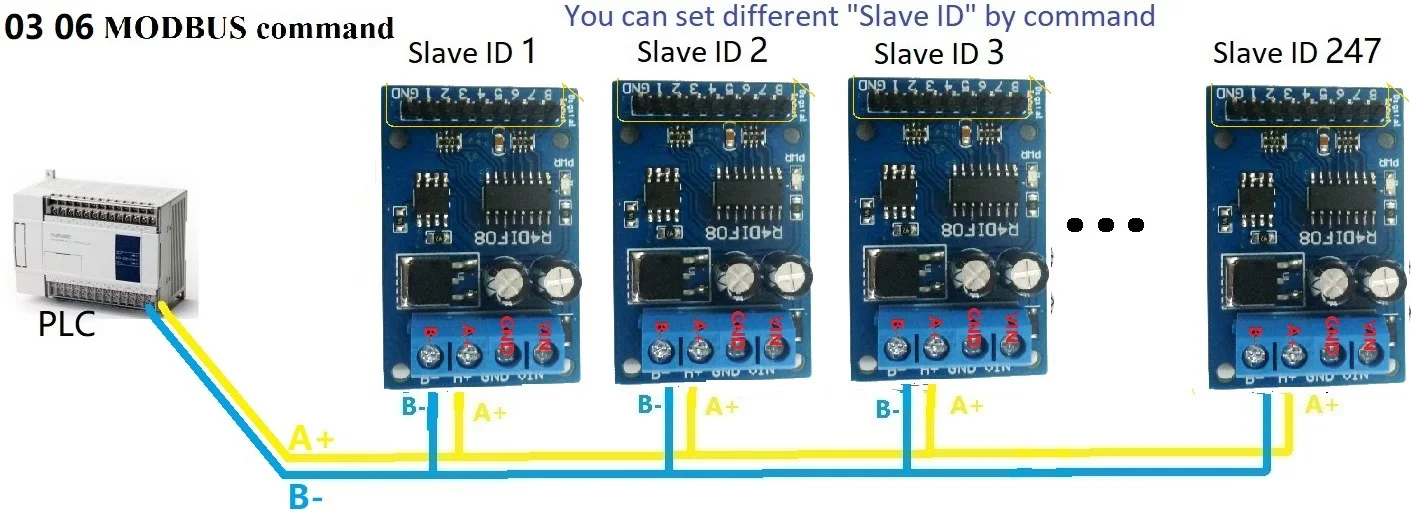

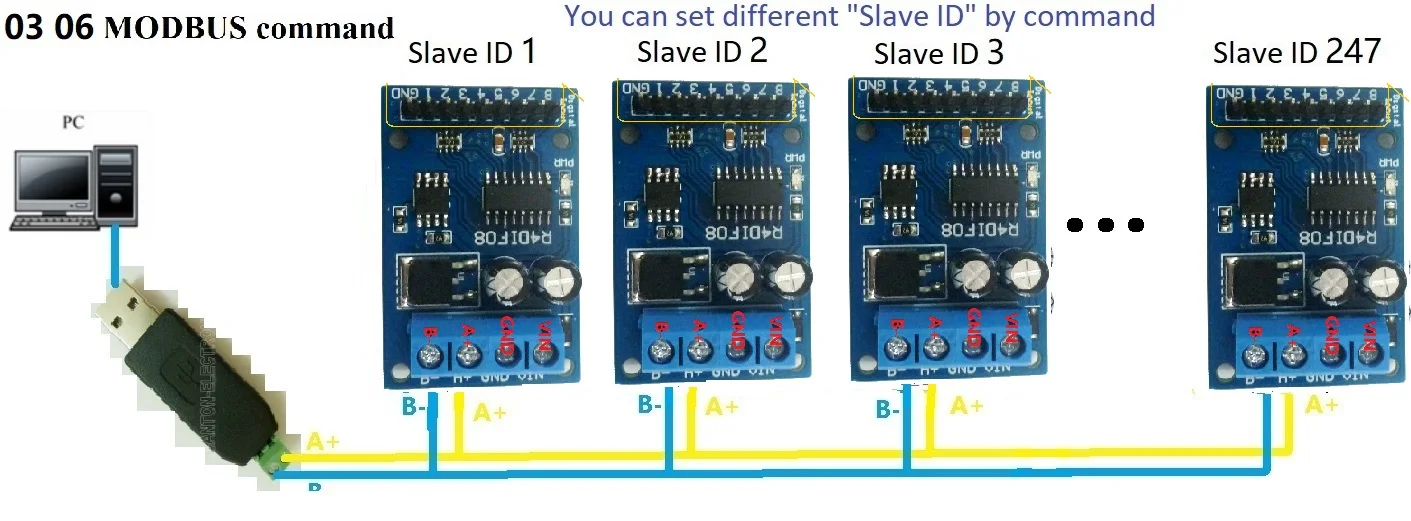

6-  In MODBUS command mode, it can support up to 247 devices to be used in parallel
7-  Input port status supports query (default) and automatic reporting
8-  The default baud rate is 9600BPS, which can be configured to support 1200 2400 4800 19200 baud rate
9-  Size: 44*29*15
10-  Weight: 10 grams


Instruction manual:

Please ask us after the purchase

Application:
Automated industry PLC.
Digital to RS485.
Smart Home, Home Automation.
Identification system.
CCTV Camera PTZ Control.
Security system.
RS485 remote control.
